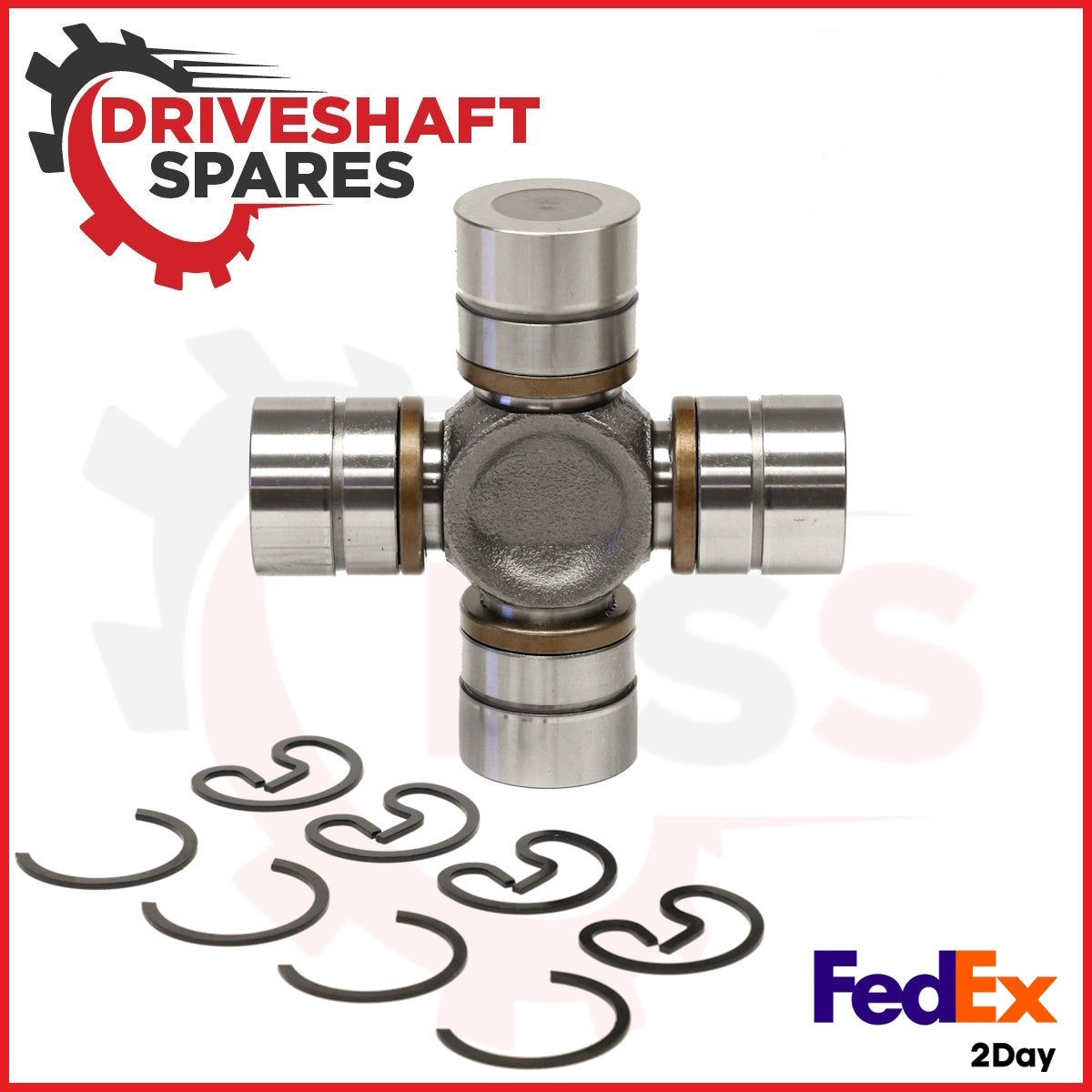

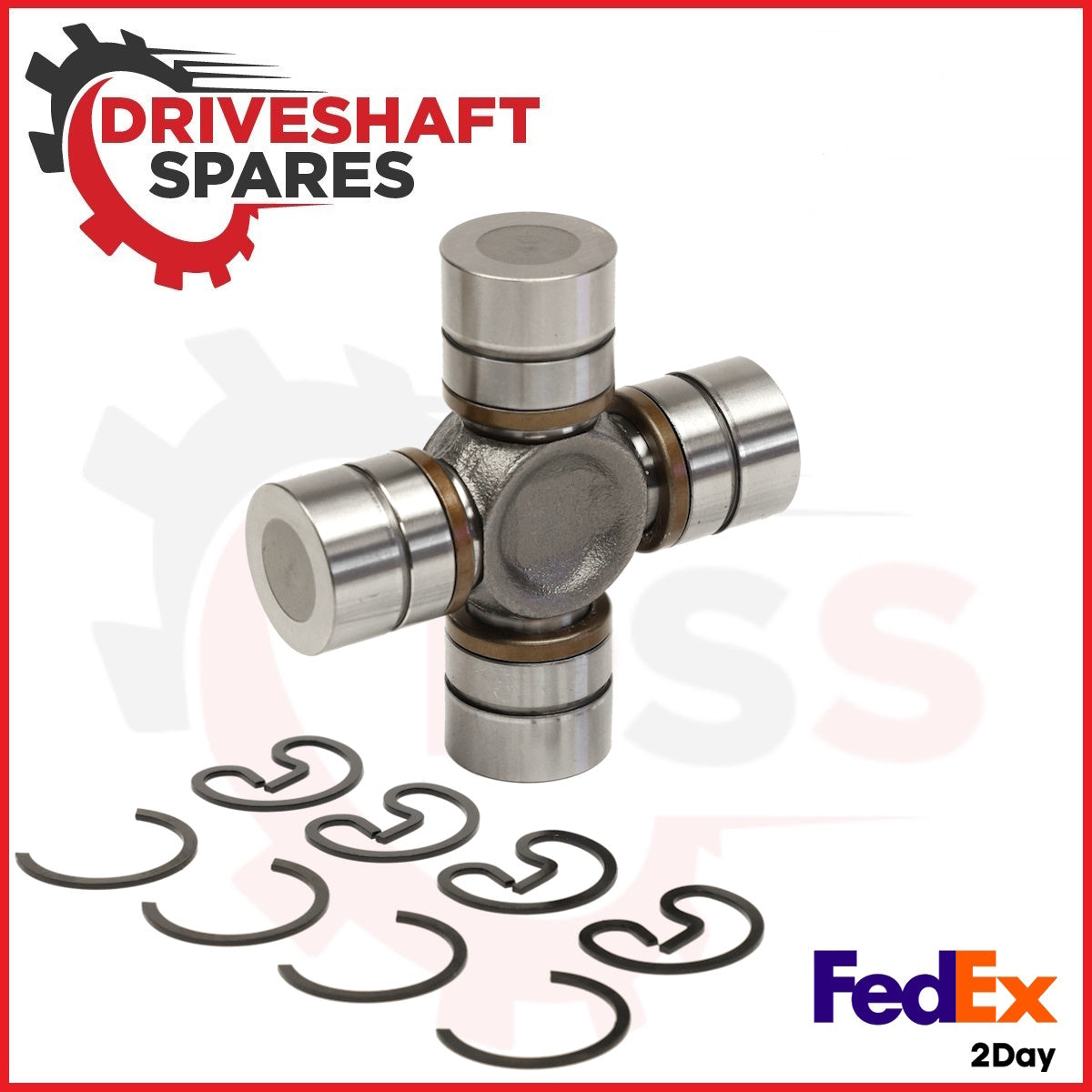

UJ1485 AAM 74081485 O/C or 2.922 I/C 1415 Series Universal Joint (1.375 x 4.114)

UJ1485/74081485 O/C or 2.922 I/C 1415 Series Driveshaft Universal Joint (1.375 x 4.114)

• Fits 2003 and newer Dodge and GM 1485 series REAR Driveshafts made by AAM American Axle Manufacturing
  • Comes with OUTSIDE Snap Rings to be used in 1485 series Driveshafts
  • Dimension A & B  4.178 inches
  • Dimension C & D 1.375 inch diameter
  • DOES NOT FIT DANA SPICER 1480 Series DRIVESHAFTS
• ALSO Fits Dodge 1485 Series 2003 to 2009 RAM 2500 and RAM 3500 4X4 Front Axle Shafts on AAM 9.25 inch Front Differential

  • Comes with INSIDE "C" Clips to be used in 1485 series Front Axles
  • All 4 bearing caps are 1.375 inch diameter with inside "C" Clips to lock the cap in place.
  • 2.920 inches  The span between the yoke inner surfaces where the "C" Clips lock in.
• OE Part Numbers 05127822AB, 5102157AE
