Driveshaft Spares LLC

U-Joint Assembly 5-170X + 2X 10-4-43 1000 Series Yokes Ø0.812 "x 0.25 Keyway.

U-Joint Assembly 5-170X + 2X 10-4-43 1000 Series Yokes Ø0.812 "x 0.25 Keyway.

Regular price $54.00 USD
Regular price Sale price $54.00 USD
Sale Sold out

 Universal Joint Kit Assembly 5-170X +2x 1000 Yoke 10-4-43 Ø0.812 "x 0.25 Keyway. fits MudMotor, GoKart, ATV

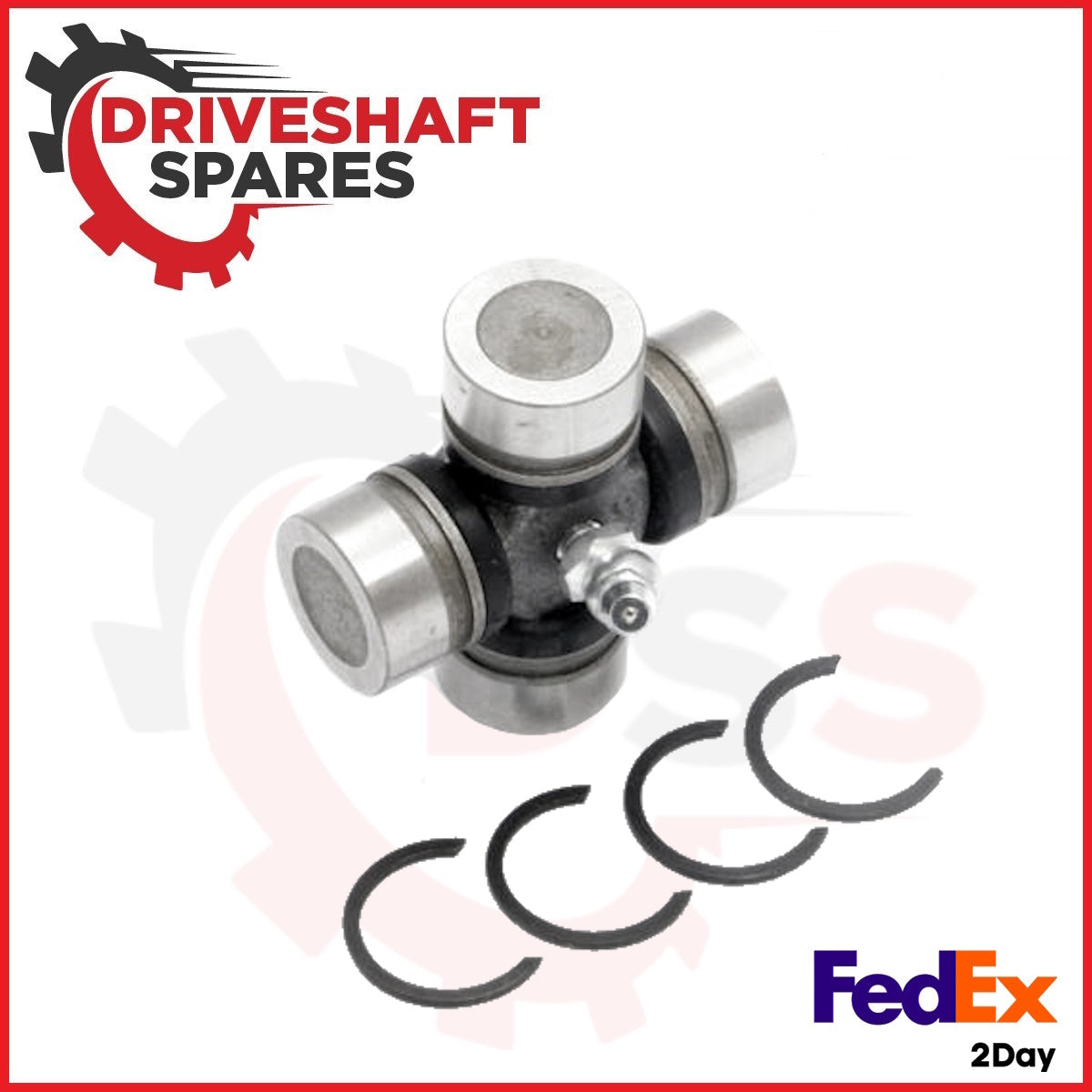

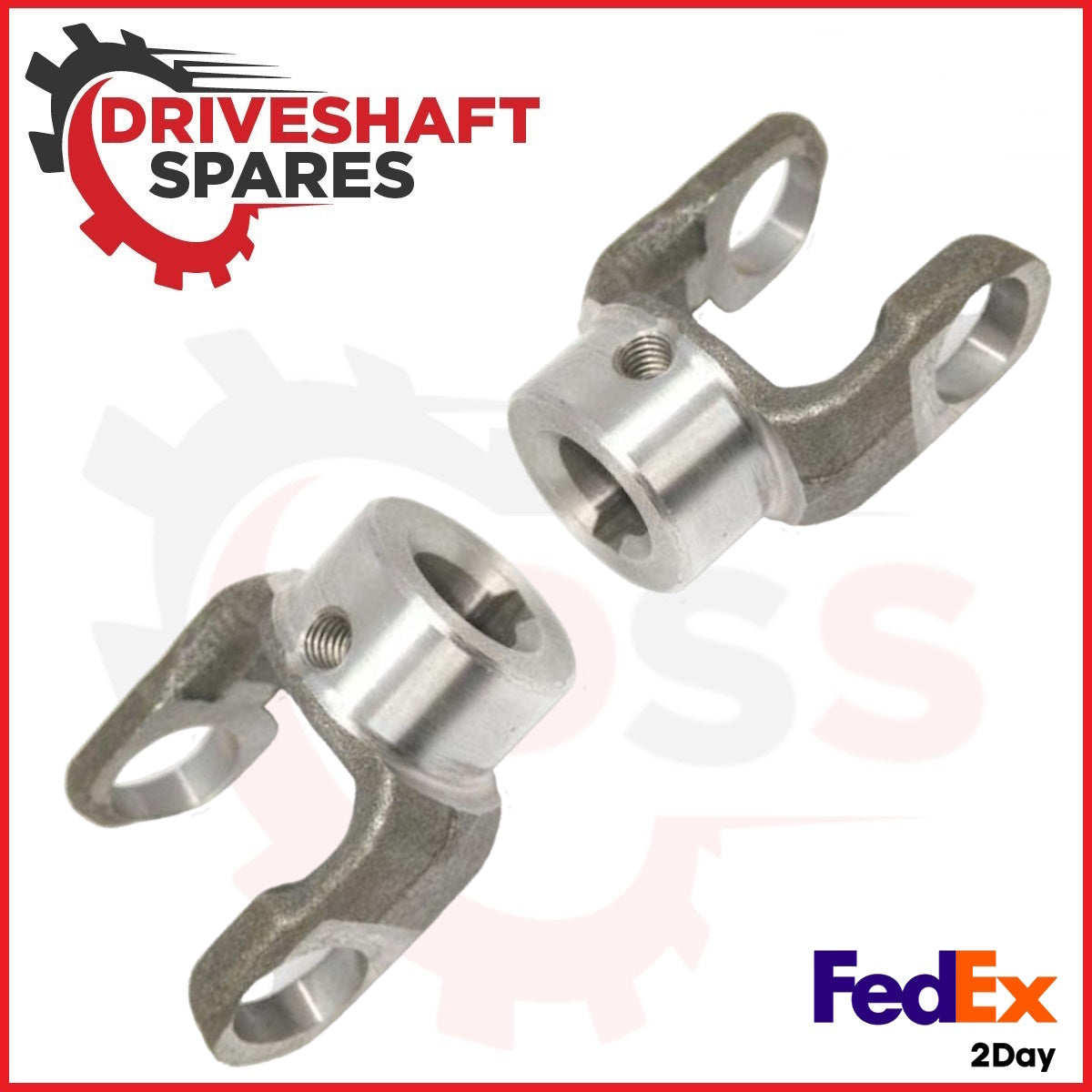

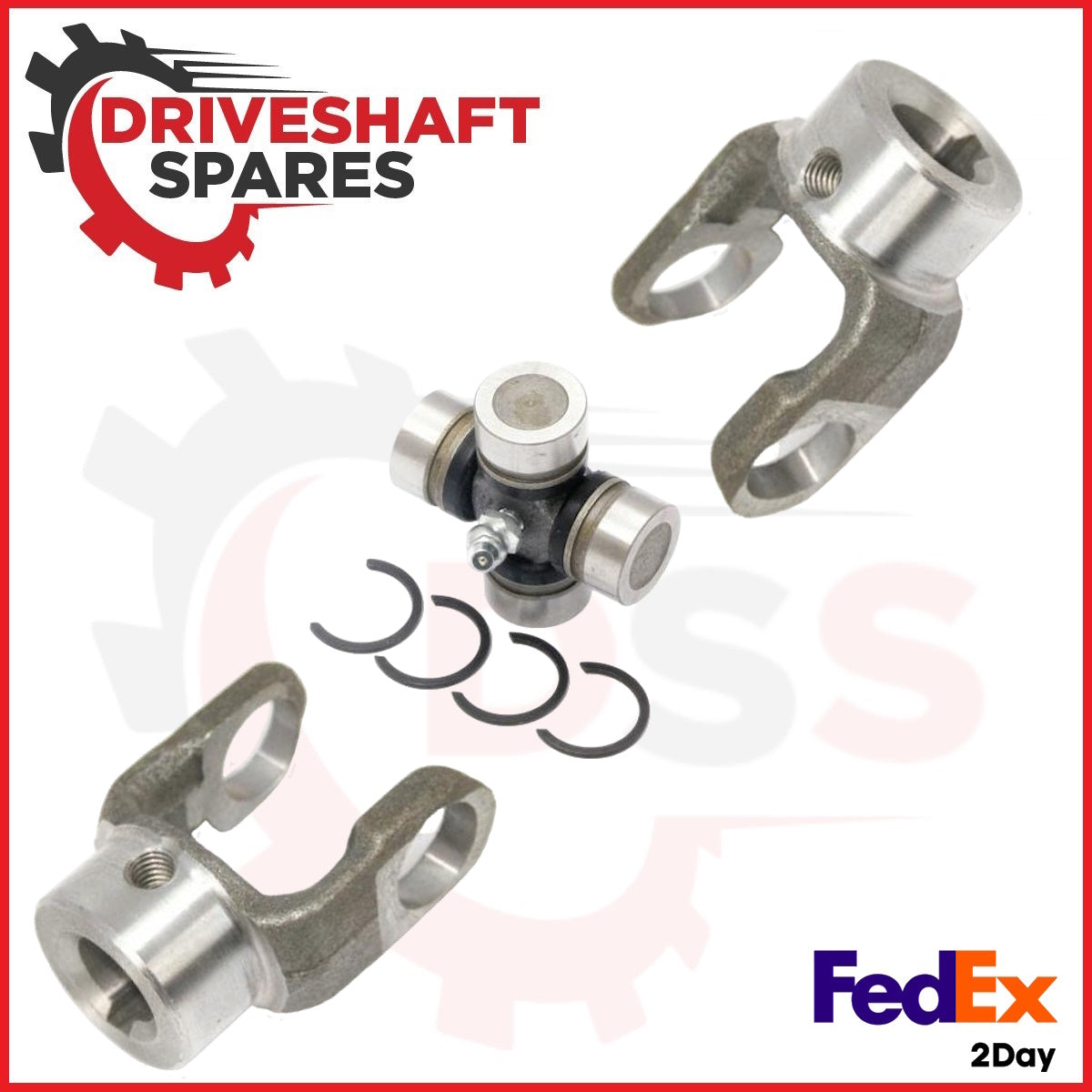

  • NB: Here you are buying 2x 10-4-43 end yokes and 1x forged steel aftermarket universal joint 5-170X to make up a kit as seen in the cover image.
  • These kits are very popular with ATV's, Large ride-on Lawn Mowers, Mud motors and any small projects where you need a driveshaft at an angle.

End Yokes
Series 1000 (0.938 x 1.500 I/C )
(P) 0.812
(R) 1.625
(S) 2.500
(X) 0.250
General Design Type Round Bore U-Joint Series 1000 Bore Diameter P 0.812 SAE Keyway Width X 0.250 Hub Diameter R 1.625 Universal Joint Retaining Width E 1.500 Universal Joint Bearing Diameter D 0.938 Length Thru Bore Q 1.030 Centerline of Joint to End of Hub S 2.500 Set Screw Thread 0.375 Keyway Location 3 Set Screw Location Clock position viewed at Hub End and Keyway at 12 W 6
Imperial Universal Joints
(D) 0.938
(F) 1.500
Type 3

    Alternative part numbers for U-JOINT:

  • CP170X
  • 114-570
  • 1-0170
  • 2240231
  • 4094089
  • 612072
  • 703325
  • 2295607
  • 2296407
  • 2396407
  • 2404877
  • D-78
  • 338
  • 1501
  • RL1000
  • 5-110X
  • 1-0172
