Toyota Tacoma (2005-2015) CBTT, Center Bearing + 5-213XS SPICER U-Joints (X3)
Toyota Tacoma (2005-2015) CBTT, Center Bearing + 5-213XS SPICER U-Joints (X3)
SKU:K1096
Regular price
$98.00 USD
Regular price
Sale price
$98.00 USD
Unit price
per
Couldn't load pickup availability
Toyota Tacoma (2005-2015) CBTT, Driveshaft Center Bearing + 5-213X SPICER U-Joints X3 (front, middle, rear)

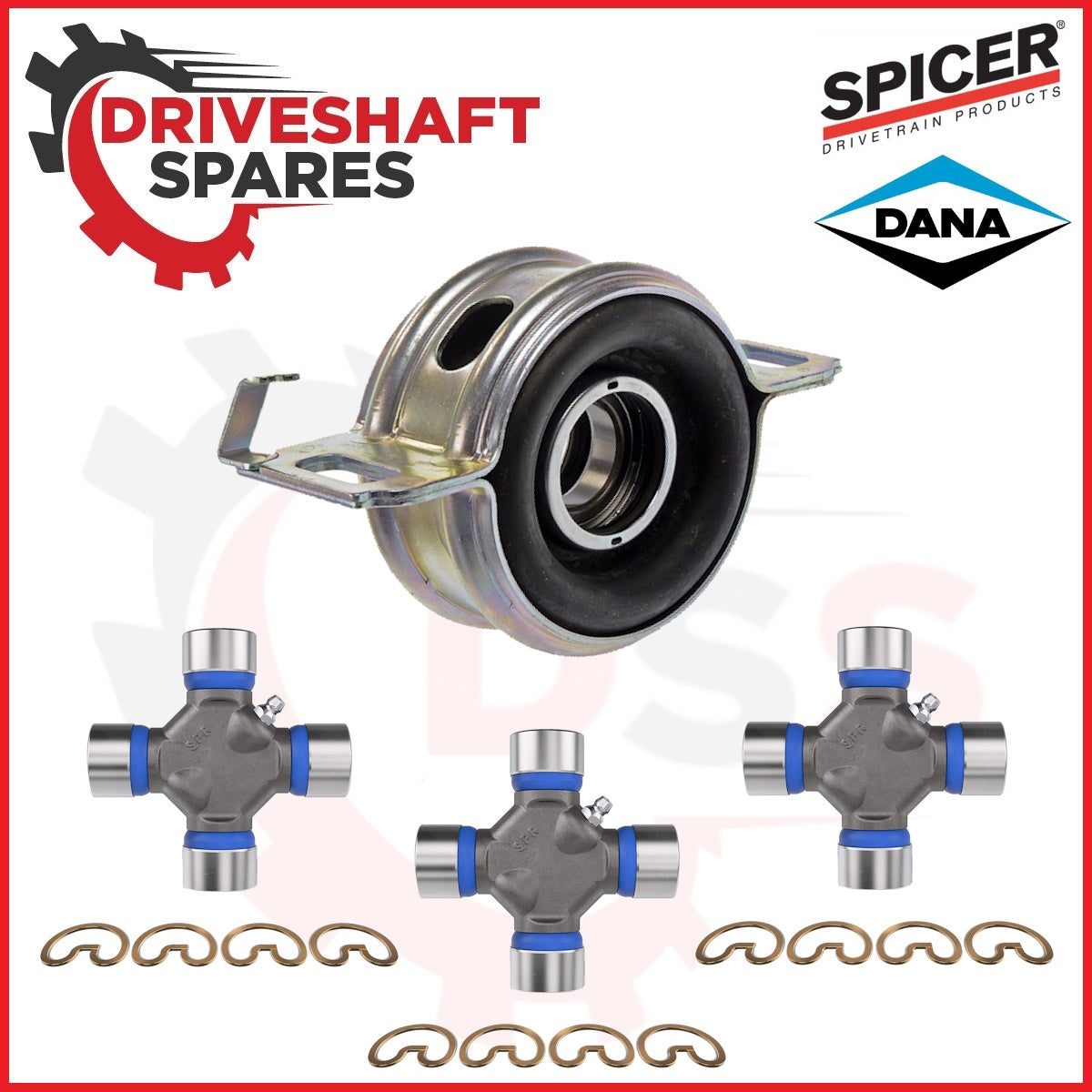

- You are buying 3x 5-213XS U-Joints + 1x CBTT Driveshaft Center Bearing in kit form as seen in the cover image.
| Brand | Spicer |
| Greaseable | Y |
| Type | OSR Style |
| OEM Mfg | Spicer |
| OEM Series | 1330 |
| Bearing Cap Diameter (1) | 1.062 |
| Bearing Cap Diameter (2) | 1.062 |
| SR(1)Brng Cap to Brng Cap(OSR) | 3.625 |
| SR(2)Brng Cap to Brng Cap(OSR) | 3.625 |
| VMRS | 024002046 |
| Bearing Cap Type | Round |
| Snap Ring Type | External |
| Snap Ring Included | Y |
| Grease Fitting Location | One straight lube fitting in cross |
| Material | Steel |
| Mounting Hardware Included | N |
| Model Number | SPICER 1330 |
| Bearing Cap Finish | Ground |
| Seal Material | Rubber |
| Seal Color/Finish | Blue |
| Coating Type | None |
| Pre Greased | N |
| Grease Type | N.L.G.I. Grade 2 |
| Grease Zerk Included | Y |
| Hardware Included | N |
| Length A (In) | 3.625 |
| Length B (In) | 3.625 |
| Length A (mm) | 92.1 |
| Length B (mm) | 92.1 |
| Bearing Cap Type A | OSR |
| Bearing Cap Type B | OSR |
| Bearing Cap Diameter A (mm) | 26.975 |
| Bearing Cap Diameter B (mm) | 26.975 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 1.37 LB |
| Harmonization Code | 8708998180 |
| Country of Origin | United States |
| Returnable | Yes |

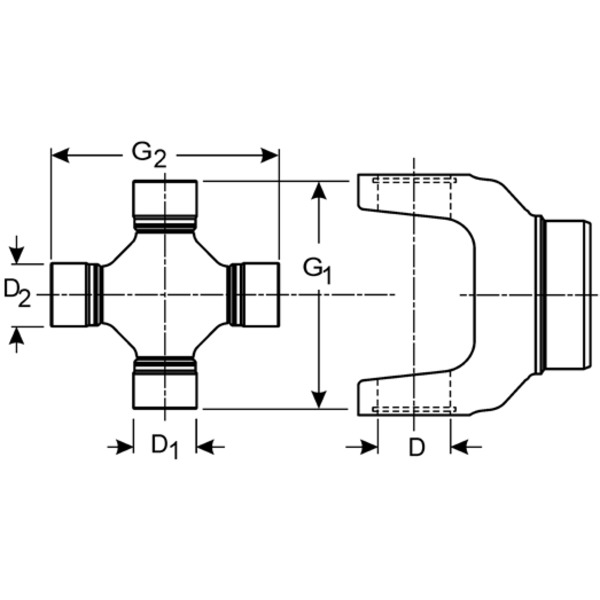

- Cap Diameter: 1.062"
- Distance between snap rings: 3.625"
- Spicer: 5-213X, 5-1203X
- Precision: 354
- Series: 1330

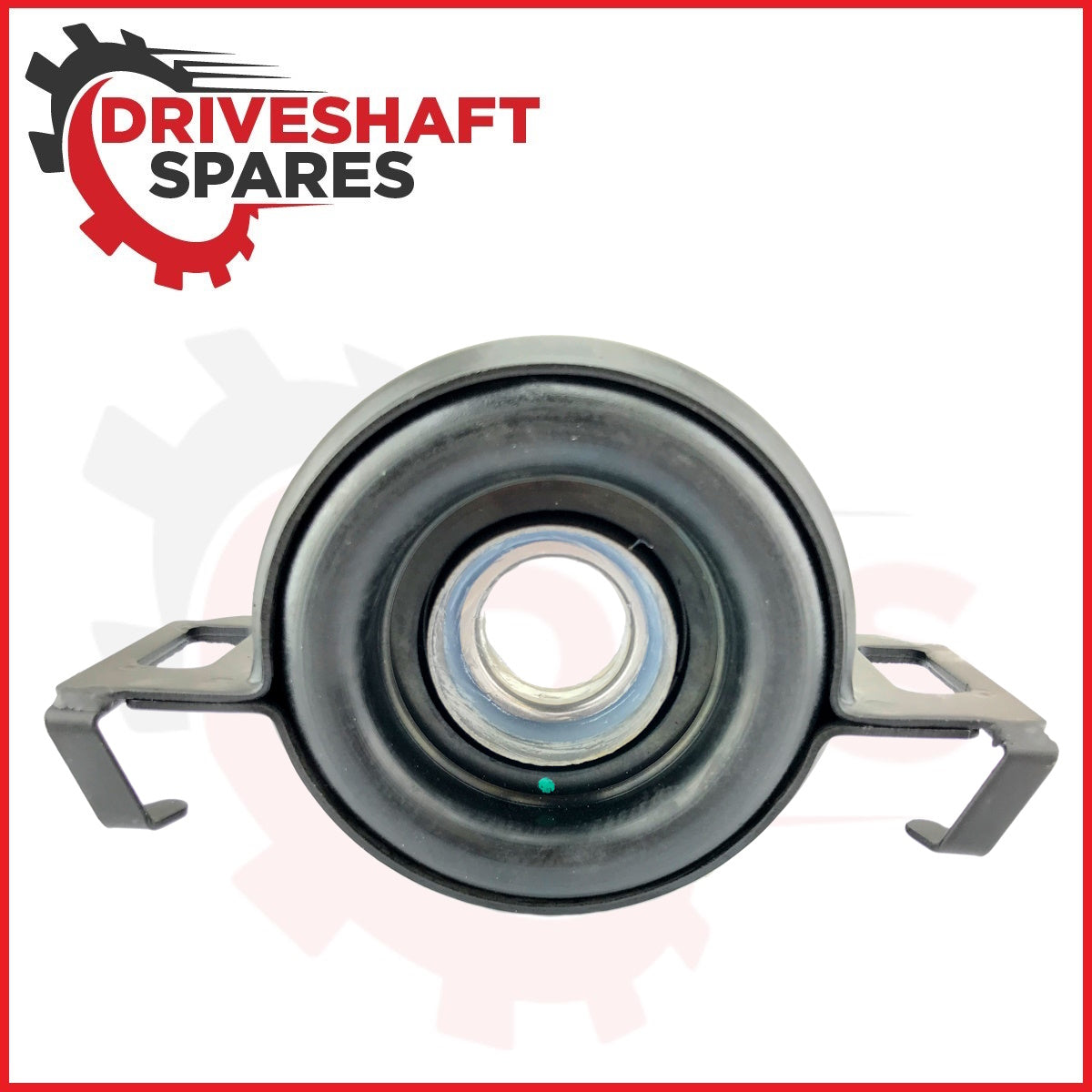

| Center Bearings | |
| Make | Toyota |
| Internal Diameter | 1.181 |
| Width | 0.511 |
| Hole Centers | 5.750 |
- 1993-98 Toyota T100 Rear Driveshaft Center Support Bearing
- 1995-04 Toyota Tacoma Rear Driveshaft Center Support Bearing
- 2000-06 Toyota Tundra Rear Driveshaft Center Support Bearing
- OE: 37230-34030, 37230-34040, 37230-35130, 3723034030, 3723034040, 3723035130, 1380-50
