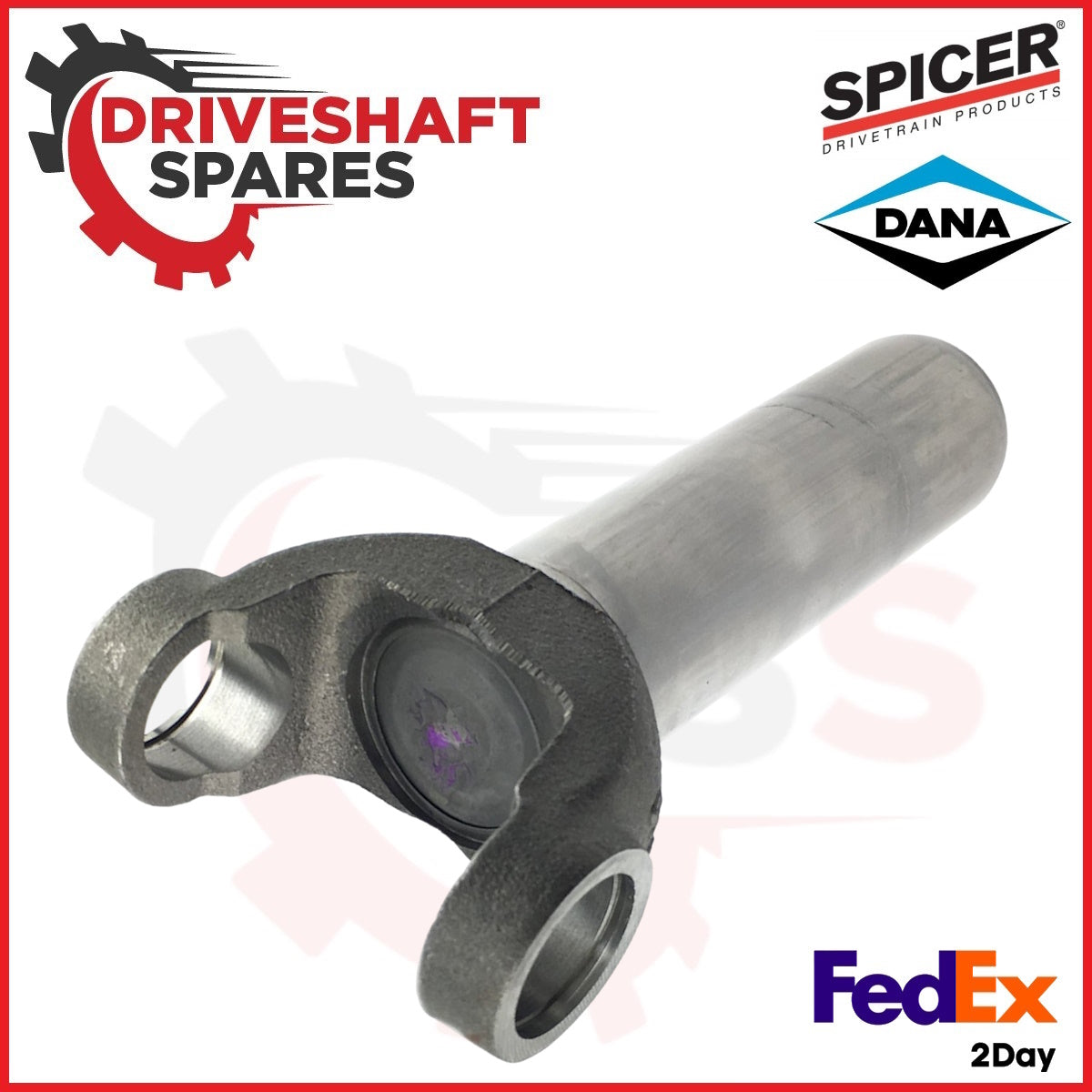

SPICER Transmission 32 Spline Slip Yoke 1350 Series 3-3-5551X GM TH400

SPICER Transmission 32 Spline Slip Yoke 1350 Series 3-3-5551X GM TH400

3-3-5551XS

$156.58 USD
$156.58 USD
Sale Sold out

SPICER Transmission 32 Spline Slip Yoke 1350 Series 3-3-5551X GM TH400

  • You are buying a SPICER Transmission Slip Yoke that fits the following transmission cases:
  • Applicable to Chevy and GMC 1350 Series Drive Lines used on 208 Transfer Cases and Other Transfer Cases with 1350 series 32 spline output shafts.

Transmission Slip Yoke Specifications

U-Join tSeries
1350
Spline Major Diameter
1.378"
Spline Count
32
Spline Type
31 Based on 32
Universal Joint Retaining Width (E) 3.875"
Universal Joint Bearing Diameter (D) 1.188"
Centerline of Joint to End of Spline (J) 7.940"
Ground Hub Diameter (R) 1.886"
Counterbore Diameter
1.430"
Counterbore Depth
0.220"
Style
Snap Ring
  • Compatible with SPICER Reference Numbers:  5-178X / 5-1350X / SPL30-1X
  • Victory Performance Parts Reference Numbers: SY1350-4040
  • Spicer Reference Number: 3-3-5551X
