Genuine Spicer U-Joint Twin Set 5-3147X Greaseable (ISR) MECHANICS S44 Series
Genuine Spicer U-Joint Twin Set 5-3147X Greaseable (ISR) MECHANICS S44 Series
SKU:K1246
Regular price
$72.00 USD
Regular price
Sale price
$72.00 USD
Unit price
per
Couldn't load pickup availability
Genuine Dana Spicer U-Joint Inside Snap Rings MECHANICS S44 Series Greaseable 5-3147X

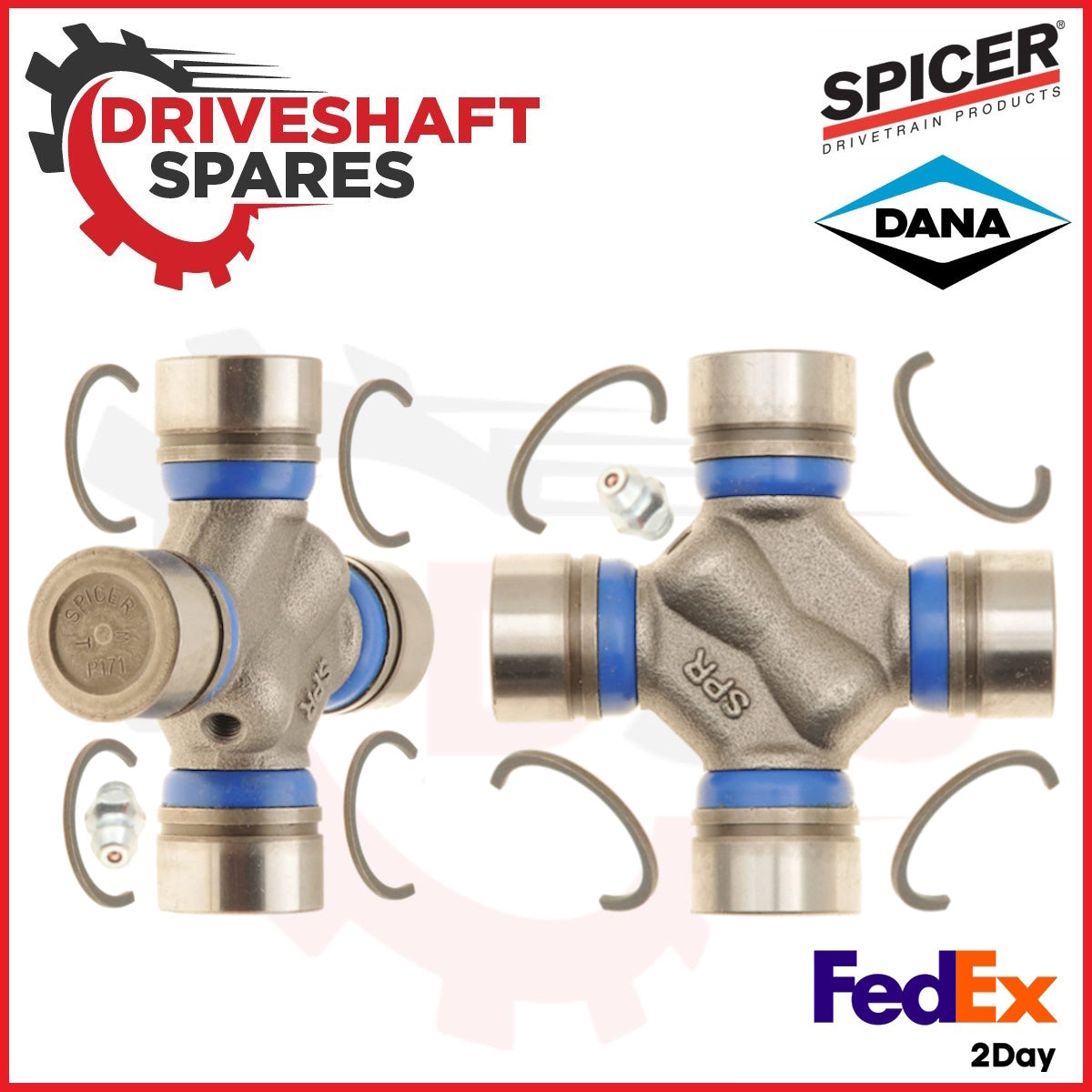

- YOU ARE BUYING A TWIN SET of 5-3147X Genuine Spicer U-Joints in kit form as seen in the cover image.
- Series: Mechanics 3, Saginaw 44, AAM 1344
| Brand | Spicer |
| Greaseable | Yes |
| Type | ISR Style |
| Invoice | U-Joint Kit |
| OEM Mfg | Mechanics |
| OEM Series | S44/3R |
| Bearing Cap Diameter (1) | 1.125 |
| Bearing Cap Diameter (2) | 1.125 |
| VMRS | 024002046 |
| Bearing Cap Type | Round with ISR Groove |
| Snap Ring Type | Internal |
| Snap Ring Included | Yes |
| Grease Fitting Location | Side of Cross |
| Material | Steel |
| Mounting Hardware Included | No |
| Model Number | 3R, Saginaw 44, AAM 1344 |
| Bearing Cap Finish | Ground |
| Seal Material | Rubber |
| Seal Color/Finish | Blue |
| Coating Type | None |
| Pre Greased | No |
| Grease Type | N.L.G.I. Grade 2 |
| Grease Zerk Included | Yes |
| Hardware Included | No |
| Length A (In) | 2.556 |
| Length B (In) | 2.556 |
| Length A (mm) | 64.922 |
| Length B (mm) | 64.922 |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Bearing Cap Diameter A (mm) | 28.575 |
| Bearing Cap Diameter B (mm) | 28.575 |
| Distance Btw Snap Ring Grooves | 2.556 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 1.5 LB |
| Country of Origin | United States |

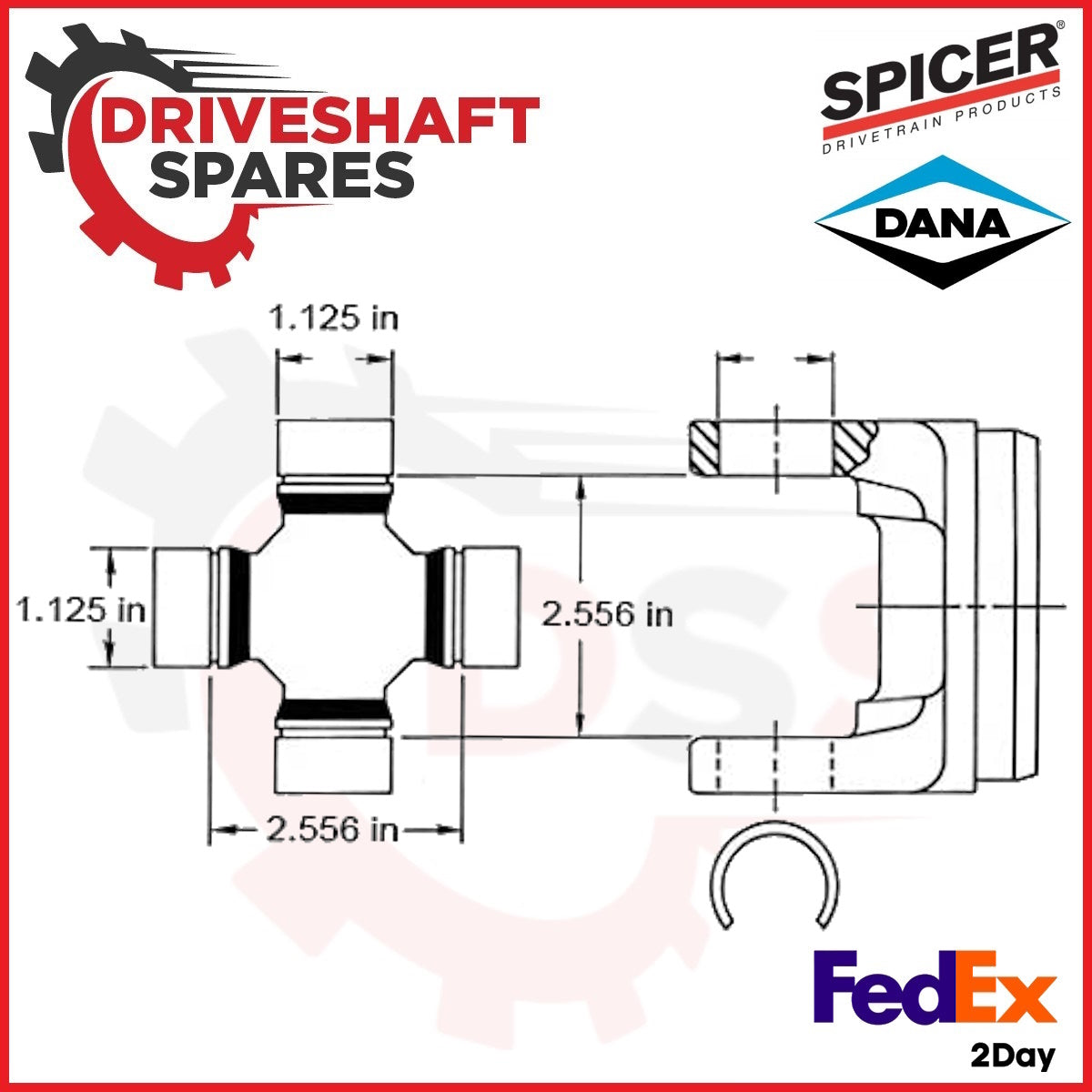

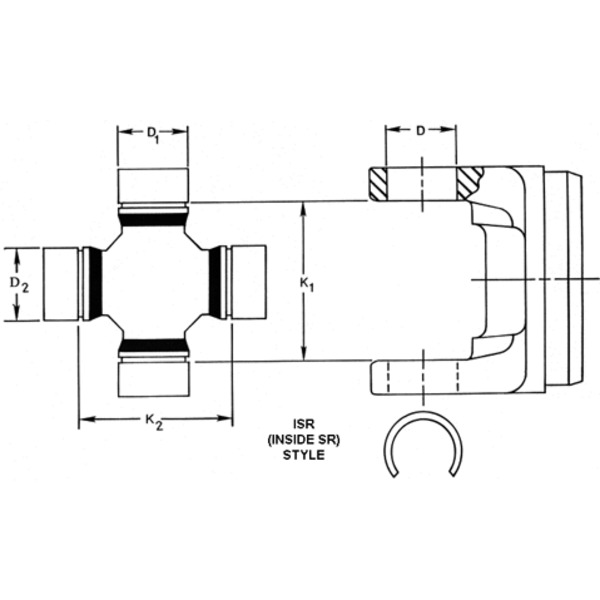

| U-Joint Style (Inside or Outside snap ring) |
| ISR |
| Distance between retaining rings | G1 | 2.556 |
| Cap Outside Diameter | D1 | 1.125 |
| Distance between retaining rings | G2 | 2.556 |
| Cap Outside Diameter | D2 | 1.125 |
Alternative OEM/Part No. Reference:
- Spicer: 5-3147X
- Precision: 492
- Other: 3031B
- Rockwell/Meritor CP3147X
- Borg Warner 114-3011
- Chrysler 5093377AB
- Ford C8SZ4635A
- Ford E7TZ4635B
- General Motors 522163
- General Motors 535554
- General Motors 565987
- General Motors 1456525
- General Motors 1463548
- General Motors 3382446
- General Motors 5671712
- General Motors 5677656
- General Motors 7806140
- General Motors 12471502
- General Motors 12479126
- General Motors 26042371
- Rockwell/Meritor CP3008
- Series: 3R
