Genuine Spicer U-Joint 5-3147X Inside Snap Rings MECHANICS S44 Series Greaseable
Genuine Spicer U-Joint 5-3147X Inside Snap Rings MECHANICS S44 Series Greaseable
SKU:5-3147XS-1
Regular price
$48.00 USD
Regular price
Sale price
$48.00 USD
Unit price
per
Couldn't load pickup availability
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 1973 | Buick | Electra | All | All |
| 1973 | Buick | LeSabre | All | All |
| 1974 | Buick | Electra | All | All |
| 1974 | Buick | LeSabre | All | All |
| 1975 | Buick | Electra | All | All |
| 1975 | Buick | LeSabre | All | All |
| 1976 | Buick | Electra | All | All |
| 1976 | Buick | LeSabre | All | All |
| 1977 | Buick | Electra | All | All |
| 1977 | Buick | LeSabre | All | All |
| 1977 | Buick | LeSabre | All | All |
| 1978 | Buick | Electra | All | All |
| 1978 | Buick | LeSabre | All | All |
| 1969 | Buick | Electra | All | All |
| 1969 | Buick | LeSabre | All | All |
| 1970 | Buick | Electra | All | All |
| 1970 | Buick | LeSabre | All | All |
| 1971 | Buick | Electra | All | All |
| 1971 | Buick | LeSabre | All | All |
| 1972 | Buick | Electra | All | All |
| 1972 | Buick | LeSabre | All | All |
| 1966 | Buick | Electra | All | All |
| 1966 | Buick | LeSabre | All | All |
| 1966 | Buick | Wildcat | All | All |
| 1964 | Buick | Riviera | All | All |
| 1965 | Buick | Riviera | All | All |
| 1966 | Buick | Riviera | All | All |
| 1967 | Buick | Riviera | All | All |
| 1966,1968 | Buick,Buick | Riviera,Riviera | , | , |
| 1969 | Buick | Riviera | All | All |
| 1970 | Buick | Riviera | All | All |
| 1971 | Buick | Riviera | All | All |
| 1972 | Buick | Riviera | All | All |
| 1973 | Buick | Riviera | All | All |
| 1974 | Buick | Riviera | All | All |
| 1975 | Buick | Riviera | All | All |
| 1976 | Buick | Riviera | All | All |
| 1977 | Buick | Riviera | All | All |
| 1978 | Buick | Riviera | All | All |
| 1964 | Buick | Skylark | All | All |
| 1964 | Buick | Special | All | All |
| 1965 | Buick | Skylark | All | All |
| 1965 | Buick | Special | All | All |
| 1966 | Buick | Skylark | All | All |
| 1967 | Buick | Skylark | All | All |
| 1967 | Buick | Special | All | All |
| 1968 | Buick | Skylark | All | All |
| 1968 | Buick | Special | All | All |
| 1969 | Buick | Skylark | All | All |
| 1969 | Buick | Special | All | All |
| 1970 | Buick | Skylark | All | All |
| 1971 | Buick | Skylark | All | All |
| 1971 | Buick | Centurion | All | All |
| 1972 | Buick | Centurion | All | All |
| 1972 | Buick | Skylark | All | All |
| 1973 | Buick | Century | All | All |
| 1973 | Buick | Regal | All | All |
| 1974 | Buick | Century | All | All |
| 1974 | Buick | Regal | All | All |
| 1975 | Buick | Century | All | All |
| 1975 | Buick | Regal | All | All |
| 1975 | Buick | Skylark | All | All |
| 1976 | Buick | Century | All | All |
| 1976 | Buick | Regal | All | All |
| 1976 | Buick | Skylark | All | All |
| 1977 | Buick | Century | All | All |
| 1977 | Buick | Regal | All | All |
| 1978 | Buick | Century | All | All |
| 1978 | Buick | Regal | All | All |
| 1979 | Buick | Century | All | All |
| 1979 | Buick | Regal | All | All |
| 1963 | Cadillac | Commercial Chassis | All | All |
| 1963 | Cadillac | DeVille | All | All |
| 1963 | Cadillac | Series 60 Fleetwood | All | All |
| 1963 | Cadillac | Series 62 | All | All |
| 1963 | Cadillac | Series 75 Fleetwood | All | All |
| 1964 | Cadillac | Commercial Chassis | All | All |
| 1964 | Cadillac | DeVille | All | All |
| 1964 | Cadillac | Series 60 Fleetwood | All | All |
| 1964 | Cadillac | Series 62 | All | All |
| 1964 | Cadillac | Series 75 Fleetwood | All | All |
| 1965 | Cadillac | Calais | All | All |
| 1965 | Cadillac | Commercial Chassis | All | All |
| 1965 | Cadillac | DeVille | All | All |
| 1965 | Cadillac | Fleetwood | All | All |
| 1966 | Cadillac | Calais | All | All |
| 1966 | Cadillac | Commercial Chassis | All | All |
| 1966 | Cadillac | DeVille | All | All |
| 1966 | Cadillac | Fleetwood | All | All |
| 1967 | Cadillac | Calais | All | All |
| 1967 | Cadillac | Commercial Chassis | All | All |
| 1967 | Cadillac | DeVille | All | All |
| 1967 | Cadillac | Fleetwood | All | All |
| 1968 | Cadillac | Calais | All | All |
| 1968 | Cadillac | Commercial Chassis | All | All |
| 1968 | Cadillac | DeVille | All | All |
| 1968 | Cadillac | Fleetwood | All | All |
| 1969,1969 | Buick,Cadillac | ,Calais | , | , |
| 1969 | Cadillac | Commercial Chassis | All | All |
| 1969 | Cadillac | DeVille | All | All |
| 1969 | Cadillac | Fleetwood | All | All |
| 1970 | Cadillac | Calais | All | All |
| 1970 | Cadillac | Commercial Chassis | All | All |
| 1970 | Cadillac | DeVille | All | All |
| 1970 | Cadillac | Fleetwood | All | All |
| 1971 | Cadillac | Calais | All | All |
| 1971 | Cadillac | Commercial Chassis | All | All |
| 1971 | Cadillac | DeVille | All | All |
| 1971 | Cadillac | Fleetwood | All | All |
| 1972 | Cadillac | Calais | All | All |
| 1972 | Cadillac | Commercial Chassis | All | All |
| 1972 | Cadillac | DeVille | All | All |
| 1972 | Cadillac | Fleetwood | All | All |
| 1973 | Cadillac | Calais | All | All |
| 1973 | Cadillac | Commercial Chassis | All | All |
| 1973 | Cadillac | DeVille | All | All |
| 1973 | Cadillac | Fleetwood | All | All |
| 1974 | Cadillac | Calais | All | All |
| 1974 | Cadillac | Commercial Chassis | All | All |
| 1974 | Cadillac | DeVille | All | All |
| 1974 | Cadillac | Fleetwood | All | All |
| 1975 | Cadillac | Calais | All | All |
| 1975 | Cadillac | Commercial Chassis | All | All |
| 1975 | Cadillac | DeVille | All | All |
| 1975 | Cadillac | Fleetwood | All | All |
| 1976 | Cadillac | Calais | All | All |
| 1976 | Cadillac | Commercial Chassis | All | All |
| 1976 | Cadillac | DeVille | All | All |
| 1976 | Cadillac | Fleetwood | All | All |
| 1976 | Cadillac | Seville | All | All |
| 1977 | Cadillac | Commercial Chassis | All | All |
| 1977 | Cadillac | DeVille | All | All |
| 1977 | Cadillac | Fleetwood | All | All |
| 1977 | Cadillac | Seville | All | All |
| 1978 | Cadillac | Commercial Chassis | All | All |
| 1978 | Cadillac | DeVille | All | All |
| 1978 | Cadillac | Fleetwood | All | All |
| 1978 | Cadillac | Seville | All | All |
| 1979 | Chevrolet | Impala | All | All |
| 1979 | Chevrolet | Caprice | All | All |
| 1978 | Chevrolet | Caprice | All | All |
| 1978 | Chevrolet | Impala | All | All |
| 1979,1977 | Chevrolet,Chevrolet | Caprice,Caprice | , | , |
| 1979,1977 | Chevrolet,Chevrolet | Impala,Impala | , | , |
| 1974 | Chevrolet | Caprice | All | All |
| 1974 | Chevrolet | Bel Air | All | All |
| 1974 | Chevrolet | Impala | All | All |
| 1975 | Chevrolet | Bel Air | All | All |
| 1975 | Chevrolet | Caprice | All | All |
| 1975 | Chevrolet | Impala | All | All |
| 1976 | Chevrolet | Caprice | All | All |
| 1976 | Chevrolet | Impala | All | All |
Genuine Dana Spicer U-Joint Inside Snap Rings MECHANICS S44 Series Greaseable 5-3147X
- Series: Mechanics 3, Saginaw 44, AAM 1344
| Brand | Spicer |
| Greaseable | Yes |
| Type | ISR Style |
| Invoice | U-Joint Kit |
| OEM Mfg | Mechanics |
| OEM Series | S44/3R |
| Bearing Cap Diameter (1) | 1.125 |
| Bearing Cap Diameter (2) | 1.125 |
| VMRS | 024002046 |
| Bearing Cap Type | Round with ISR Groove |
| Snap Ring Type | Internal |
| Snap Ring Included | Yes |
| Grease Fitting Location | Side of Cross |
| Material | Steel |
| Mounting Hardware Included | No |
| Model Number | 3R, Saginaw 44, AAM 1344 |
| Bearing Cap Finish | Ground |
| Seal Material | Rubber |
| Seal Color/Finish | Blue |
| Coating Type | None |
| Pre Greased | No |
| Grease Type | N.L.G.I. Grade 2 |
| Grease Zerk Included | Yes |
| Hardware Included | No |
| Length A (In) | 2.556 |
| Length B (In) | 2.556 |
| Length A (mm) | 64.922 |
| Length B (mm) | 64.922 |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Bearing Cap Diameter A (mm) | 28.575 |
| Bearing Cap Diameter B (mm) | 28.575 |
| Distance Btw Snap Ring Grooves | 2.556 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 1.5 LB |
| Country of Origin | United States |

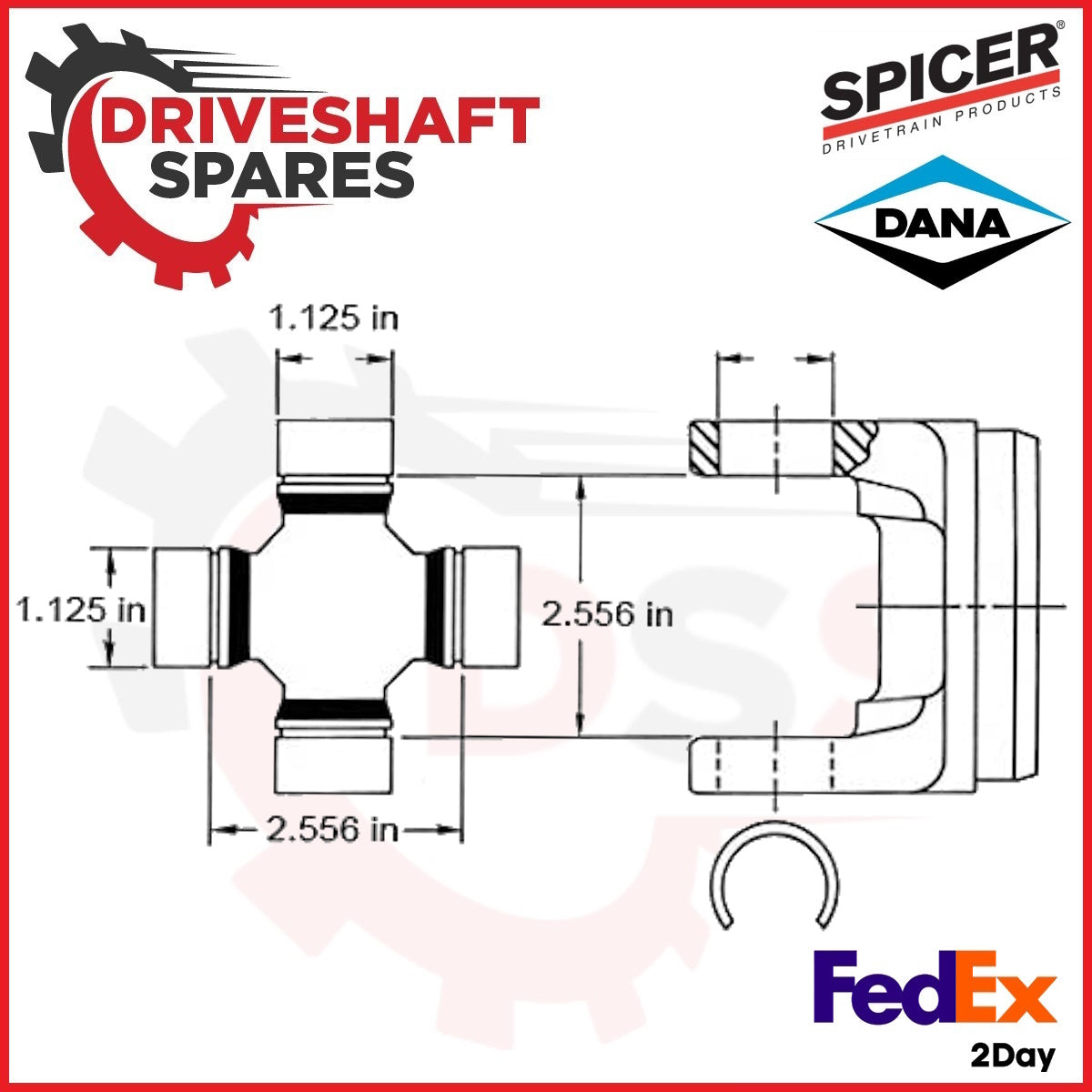

| U-Joint Style (Inside or Outside snap ring) |
| ISR |
| Distance between retaining rings | G1 | 2.556 |
| Cap Outside Diameter | D1 | 1.125 |
| Distance between retaining rings | G2 | 2.556 |
| Cap Outside Diameter | D2 | 1.125 |
Alternative OEM/Part No. Reference:
