Ford Explorer & Ranger Front Driveshaft CV Joint + U-Joint + SPICER Strap Kit
Ford Explorer & Ranger Front Driveshaft CV Joint + U-Joint + SPICER Strap Kit
SKU:K1537
Regular price
$78.60 USD
Regular price
Sale price
$78.60 USD
Unit price
/
per
Couldn't load pickup availability
Ford Explorer 97-08 / Ranger 98-10 Front Driveshaft CV Joint+ U-Joint + SPICER Strap Kit

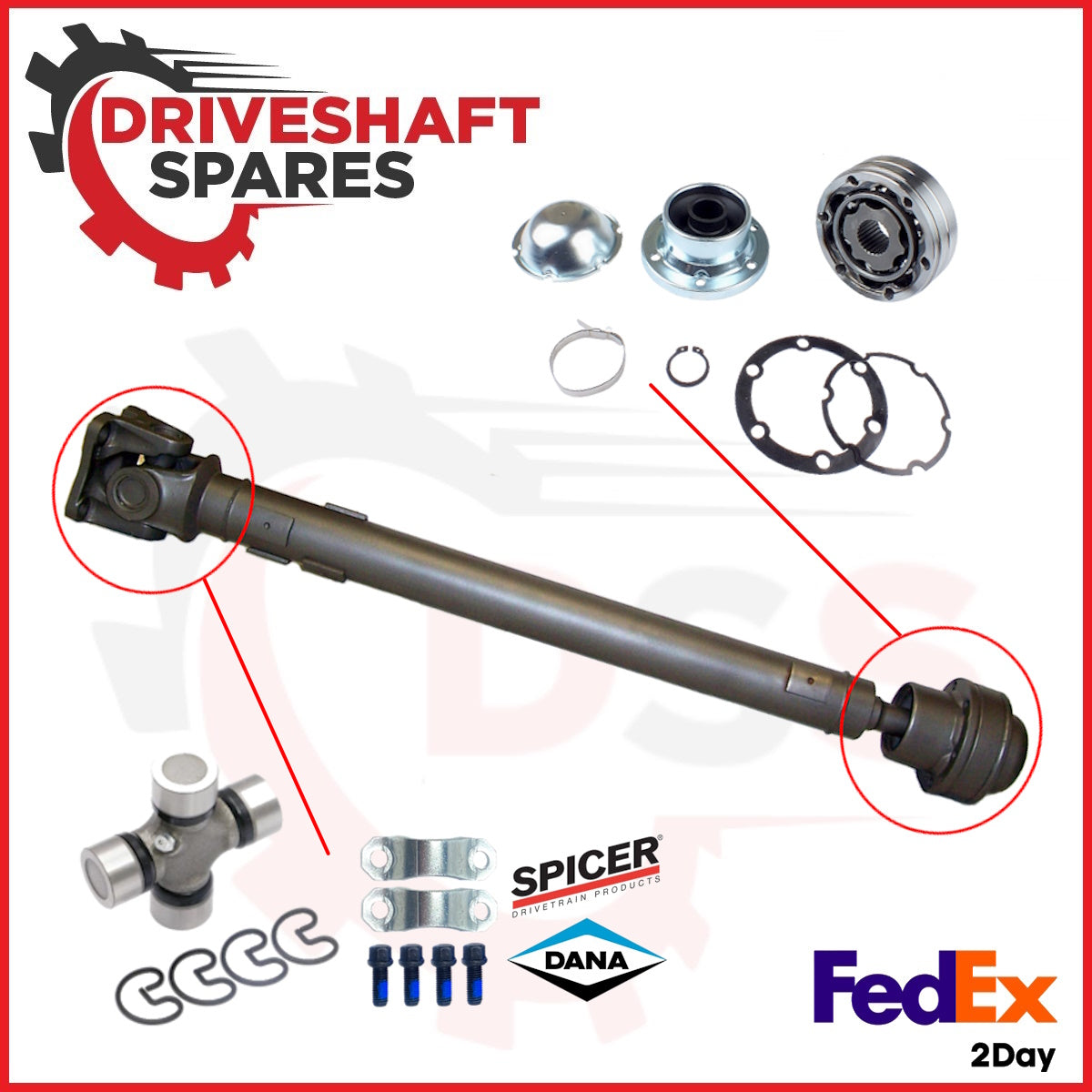

- YOU ARE BUYING 1X brand new Ford VW712 aftermarket front driveshaft CV-Joint replacement kit, Universal Joint 5-153X and DANA SPICER strap kit 2-70-18X in kit form as seen in the cover image:
| Vehicle | Years |
| Ford Explorer | 1997-2008 |
| Ford Ranger | 1998-2010 |
| Lincoln Aviator | 2002-2005 |
| Mercury Mountaineer | 1997-2008 |
| Mazda B3000 | 1998-2002 |
| Mazda B4000 | 1998-2009 |

| Driveshaft CV Joints | |
| Splines | 26 |
| Outside Diameter | 4.213 |
| Width | 1.378 |
- OEM Part number refs: 1L2Z4A376AA, XL2Z4A376AA, 1L2Z 4A376 AA, XL2Z 4A37, K-4A376-AFR, 428-80
- CV-Joint, Snap ring, Straps, Boot, Grease, Bolts, Gasket
- 2 year warranty (warranty not valid if you have a damaged boot)
- high quality brand
- fast shipping
- no hassle returns
- Ships from Fort Lauderdale, Florida with UPS
- Tracking number provided.

| Imperial Universal Joints | |
| (D) | 1.062 |
| (L) | 3.219 |
| Type | 2 |
- 5-153X Greaseable Univeral Joint Grease Fitting in body of u-joint 1310 series
- A 3.219 inches (3-7/32 inches)
- B 3.219 inches (3-7/32 inches)
- C 1.062 inch (1-1/16 inch)
- diameter D 1.062 inch
- (1-1/16 inch) diameter Outside snap rings
- Part Number: 5-153X

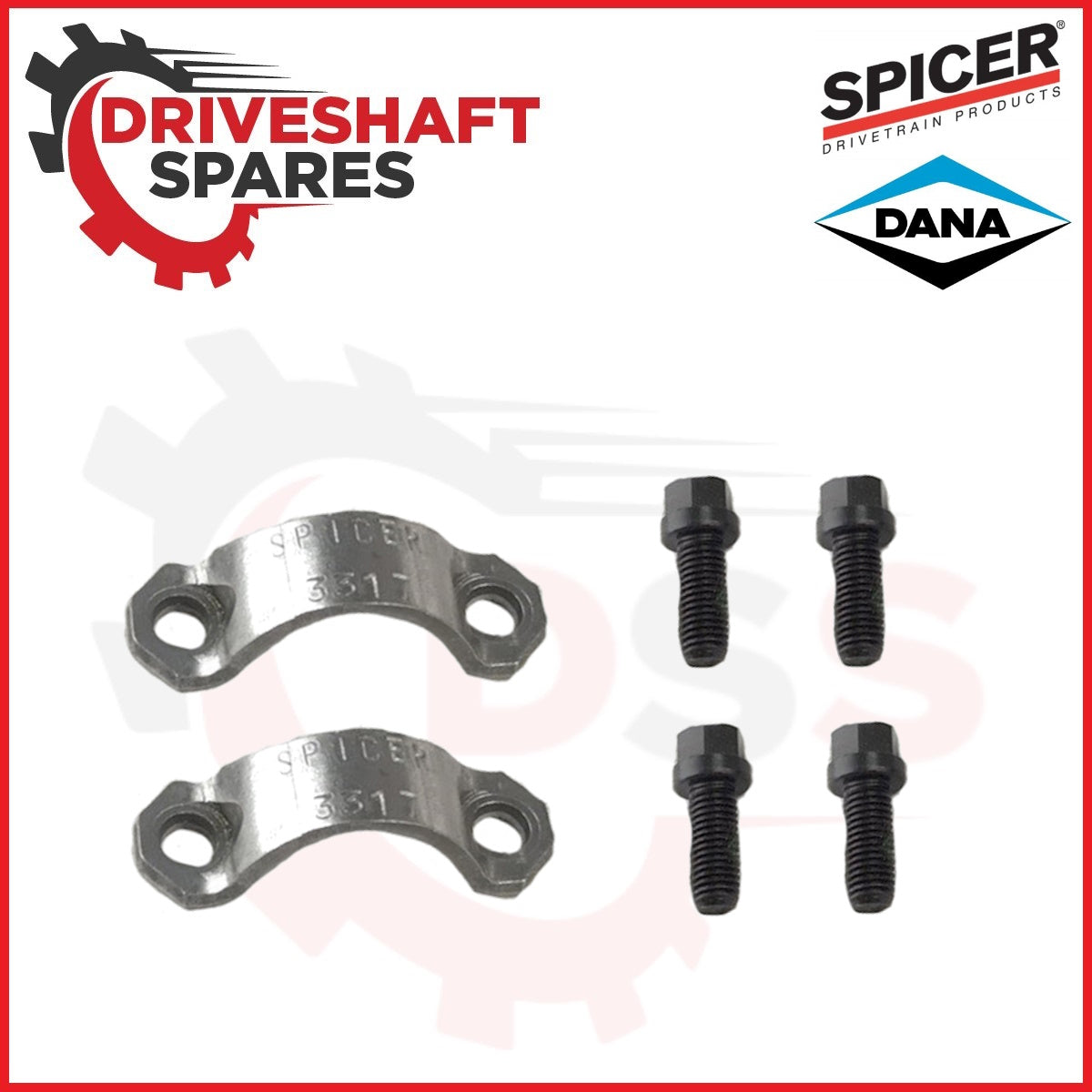

2-70-18X DANA SPICER Universal Joint Strap Kit 1210/1310/1330:
- Brand - DANA SPICER
- Series - 1210/1310/1330
- Fits Bearing Cap Diameter - 1.062
- Thread Diameter - .250-28
- Bolt Length - .625
- C/L To C/L - 1.587
- Bolt Torque - 15
- Type (Strap/Retainer) - Strap
