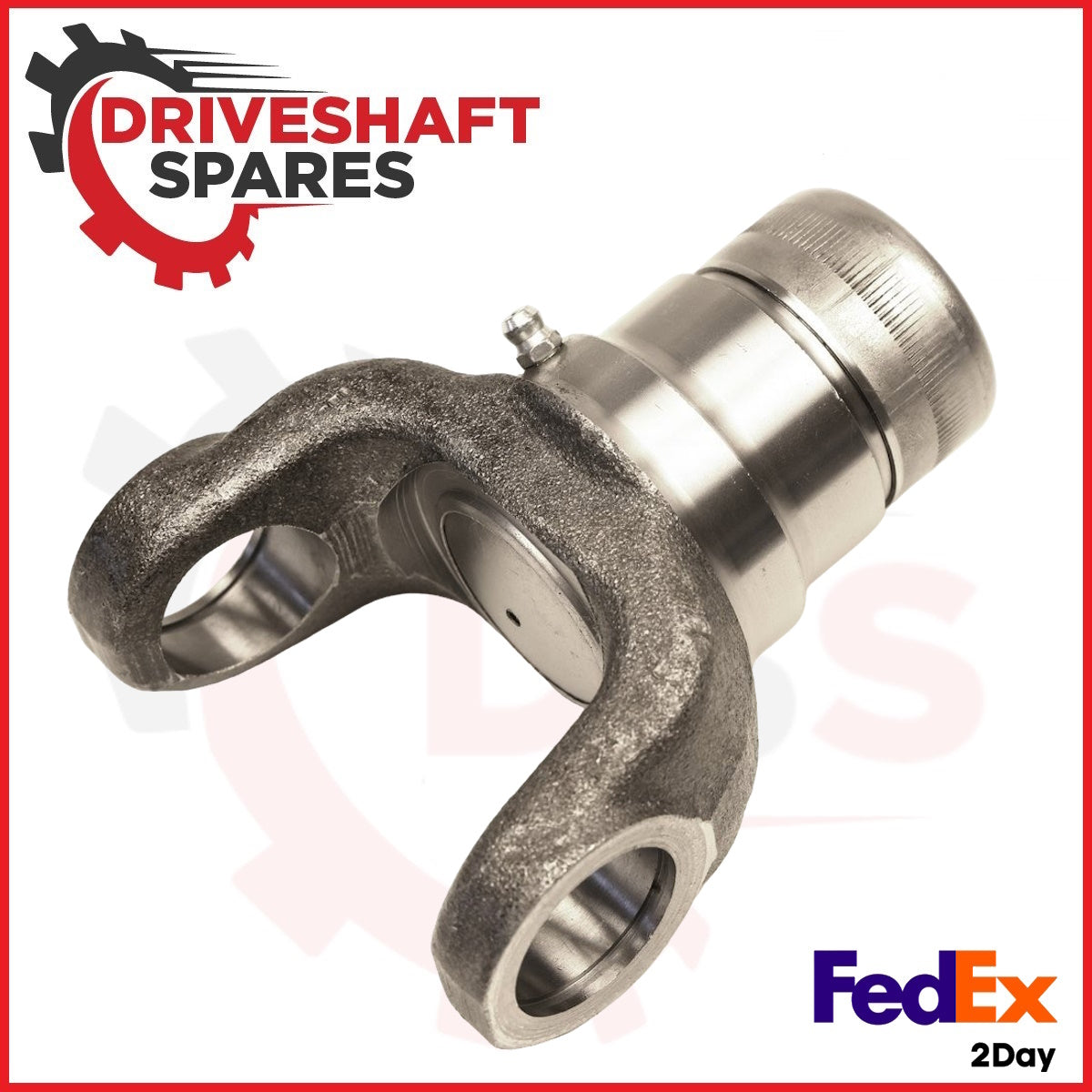

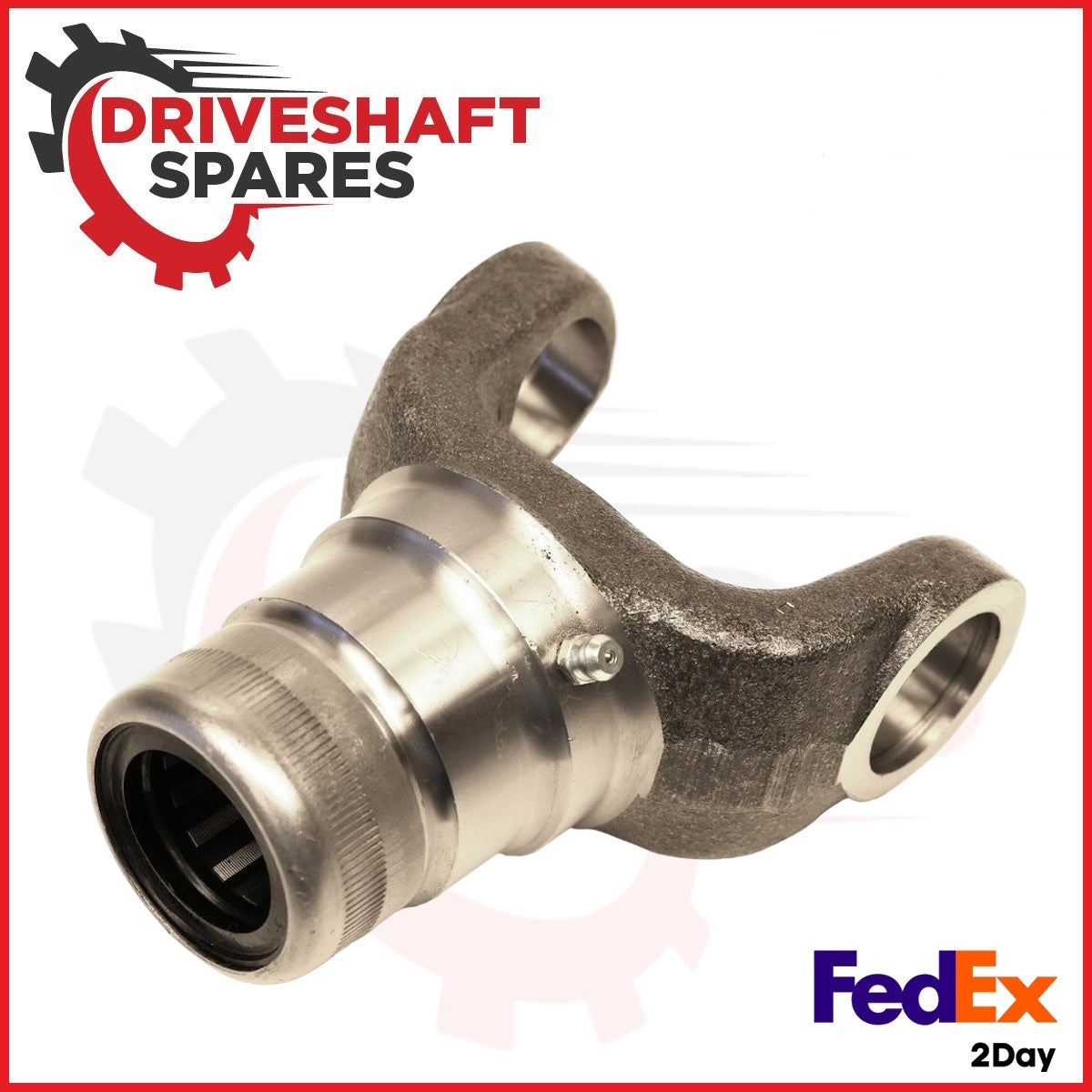

Driveshaft Slip Yoke 3-3-388KX 1350 series 1.500x16 SPL 3.938 Centerline to End

Driveshaft Slip Yoke 3-3-388KX 1350 series 1.500x16 SPL 3.938 Centerline to End

$82.00 USD
$82.00 USD
Sale Sold out

Driveshaft Slip Yoke 3-3-388KX 1350 series 1.500x16 spl 3.938 Centerline to End


Slip Yokes
Series 1350 (1.188 x 3.625)
Spline 1.500x16
Centerline to End of Spline 3.938

General Design Type  - LD-MD Driveshaft
U-Joint Series  - 1350
Spline Major Diameter  - 1.500
Spline Count  - 16.000
Spline Type  - Parallel
Max Joint Angle  - 20.000
Universal Joint Retaining Width  E  - 3.875
Universal Joint Bearing Diameter  D  - 1.188
Centerline of Joint to End of Spline  J  - 3.938
Centerline of Joint to Face of Plug  F  - 1.188
Part Number of Lube Fitting  - SPI-500174-1
Dust Cap & Washer Kit Number  - SPI-D3A
Slip Yoke Plug part number (included)              - SPI-3-68-33
Compatible U-Joint Kits  - SPI-5-178X, SPI-5-1350X, SPI-SPL30-1X
Style  - Snap Ring
