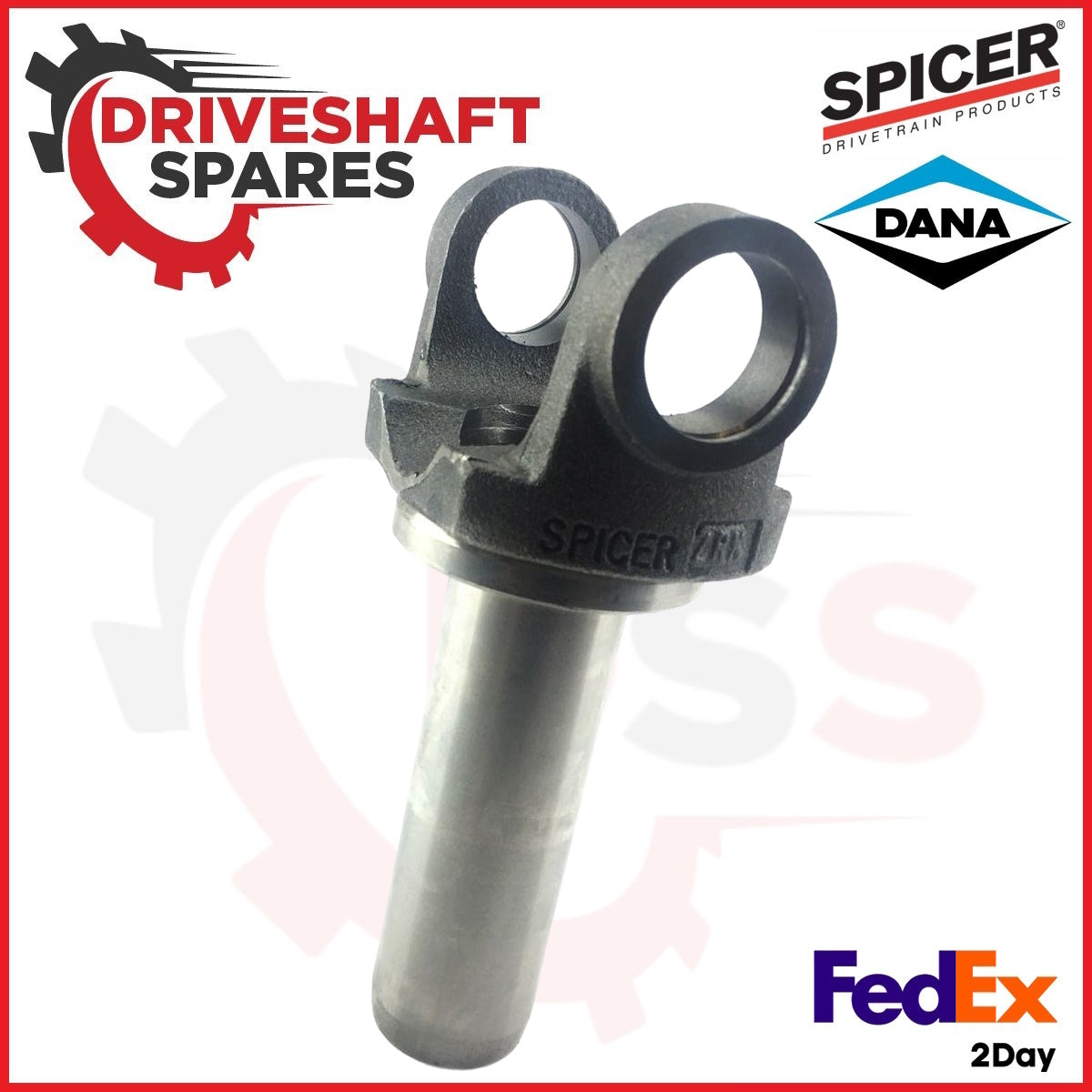

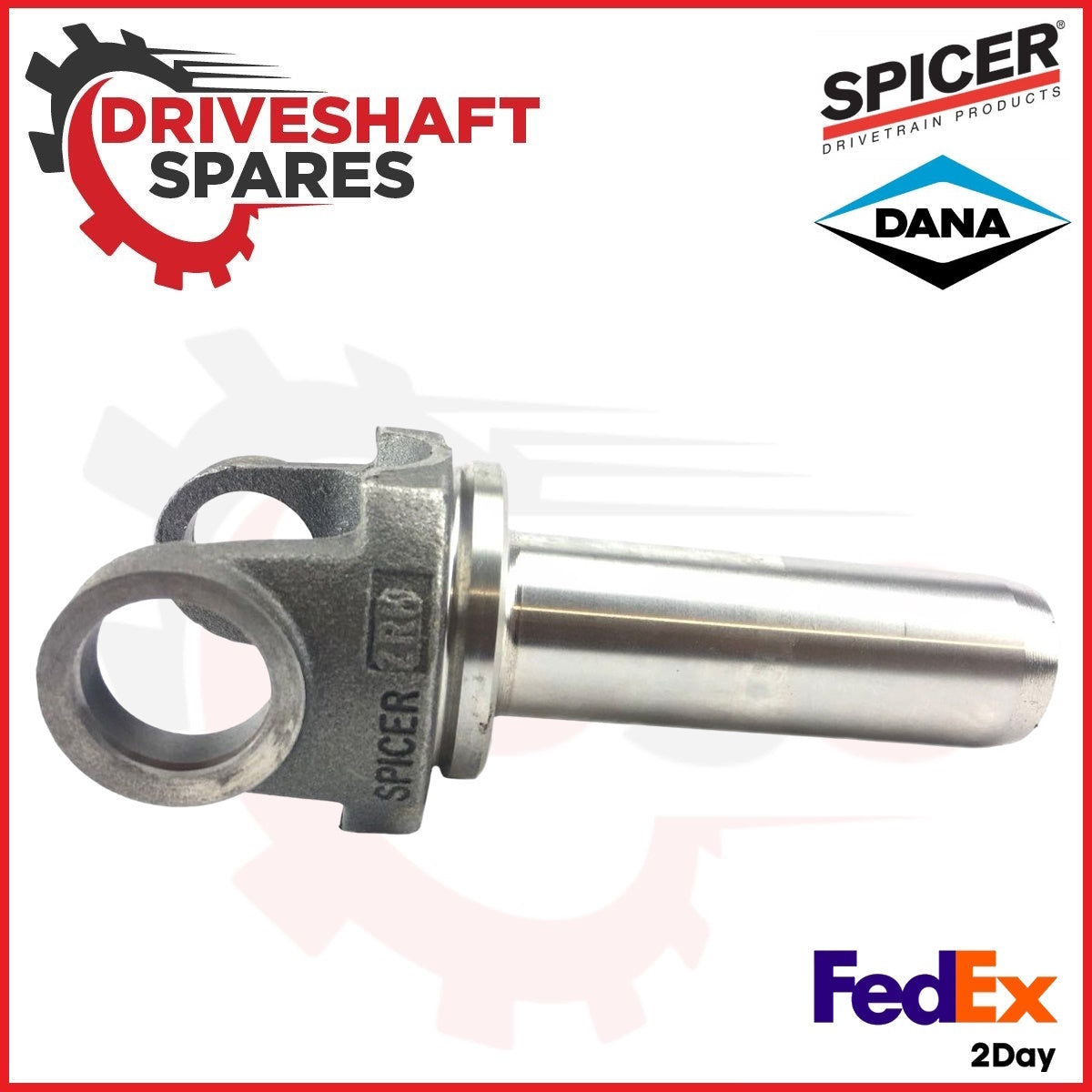

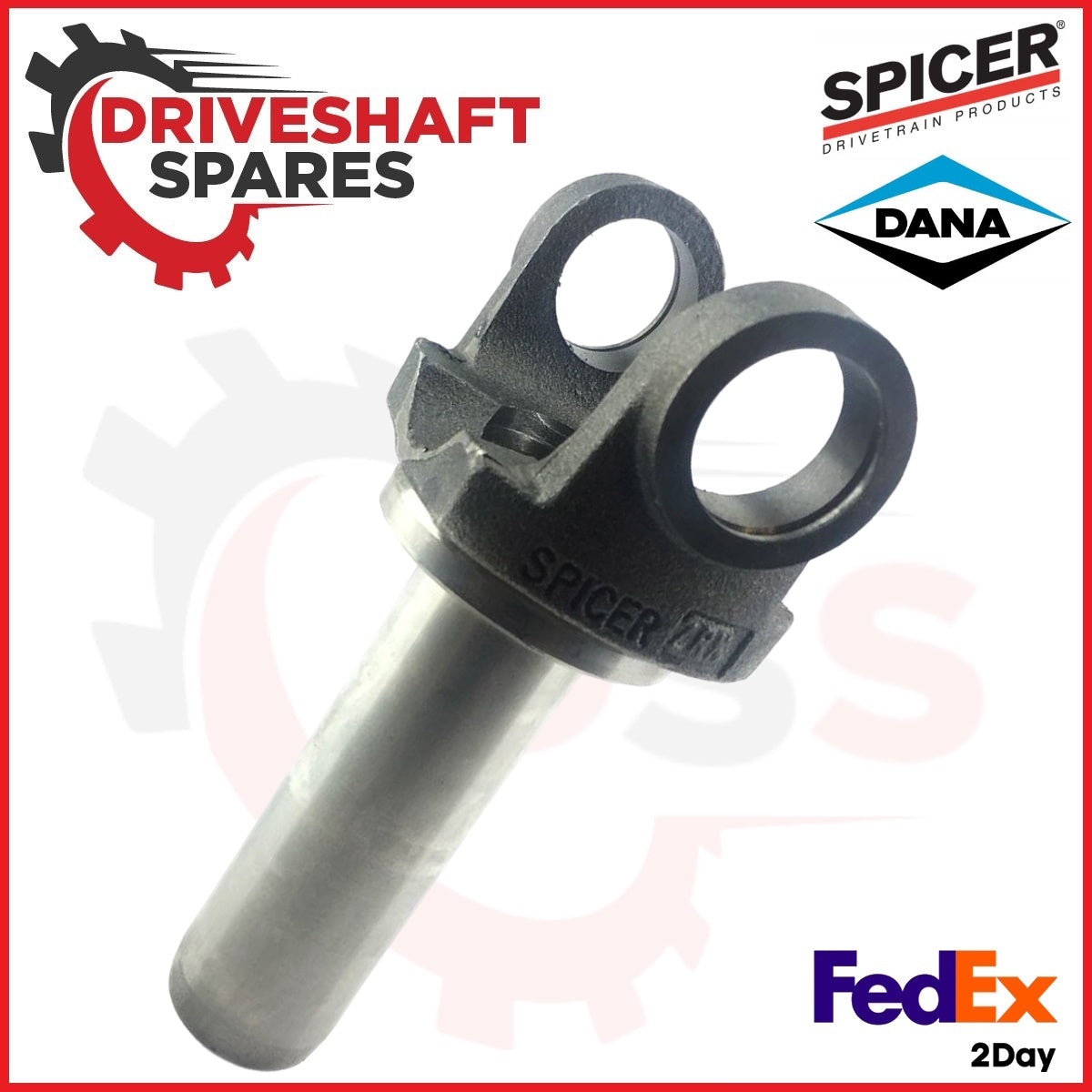

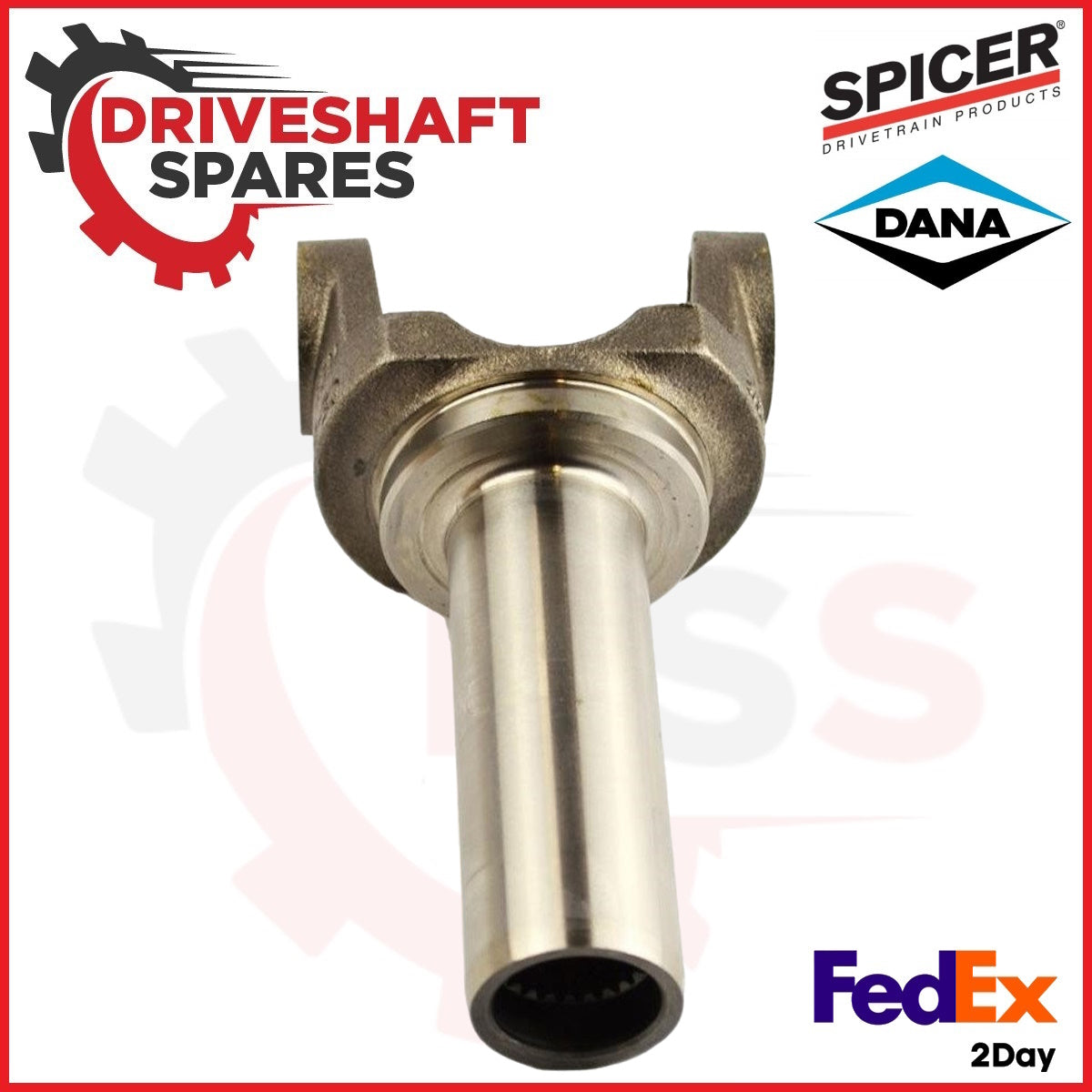

SPICER 2-3-13461X Transmission Slip Yoke..1310 series, 1.005x24 spline, 1.376 SPICER
| U-Joint Series | 1310 | |
| Spline Major Diameter | 1.005 | |

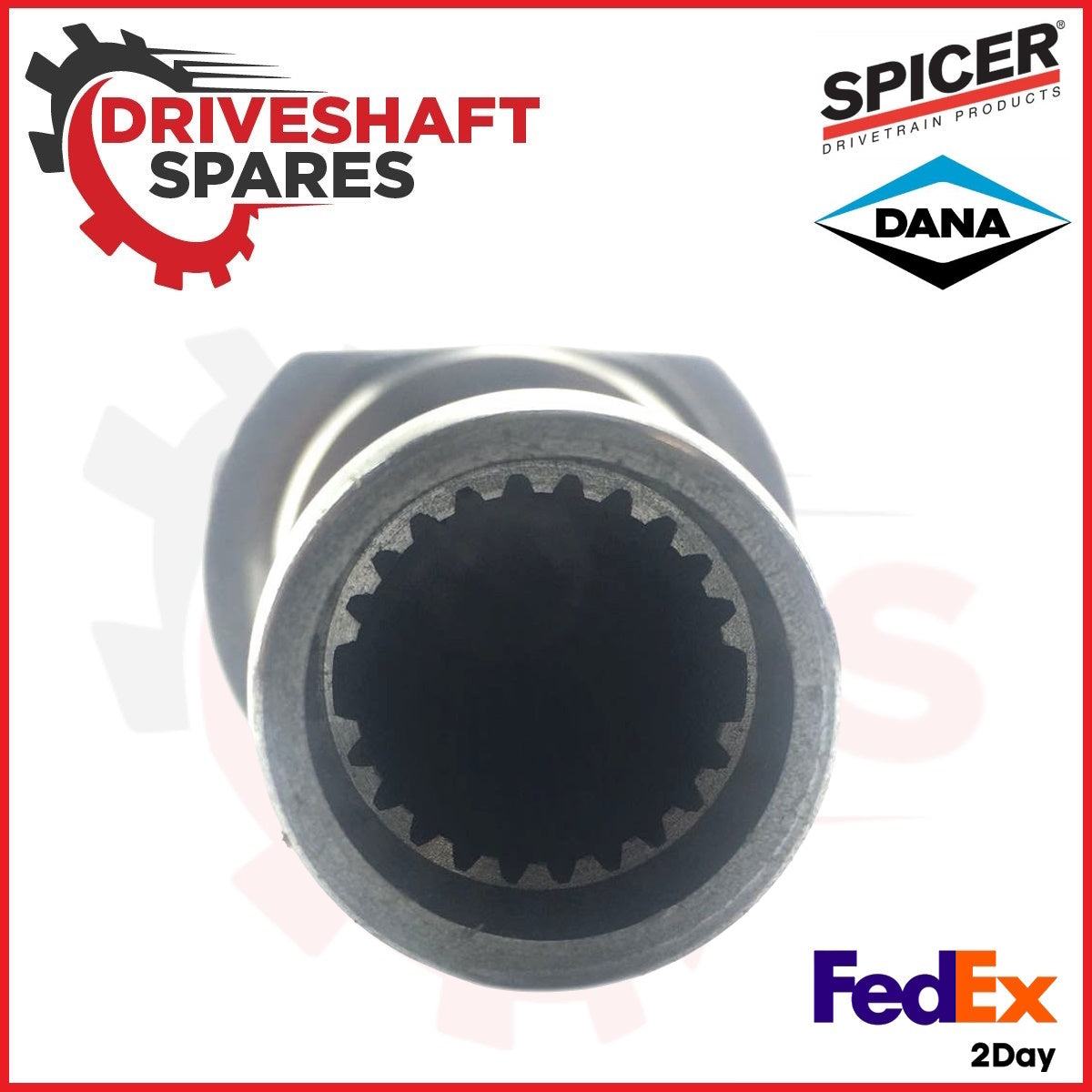

| Spline Count | 24.000 | |
| Spline Type | 22 Based On 24 Spline | |
| Universal Joint Retaining Width | E | 3.469 |
| Universal Joint Bearing Diameter | D | 1.062 |
| Centerline of Joint to End of Spline | J | 6.045 |
| Ground Hub Diameter | R | 1.376 |
| Counterbore Diameter | 1.043 | |
| Counterbore Depth | 0.390 | |
| Style | Snap Ring | |
| Slip Yoke Plug part number (included) | SPI-500166-20 | |
| Compatible U-Joint Kits | SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
| Transmission Yokes | |
| Series | 1310 (1.062 x 3.219) |
| OD | 1.376 |
| Splines | 22/24 |
| Length | 6.045 |
- Transmission Slip Yoke 1310 series, Ø1.005x24 spline, Ø1.376 Ground Hub Diameter (Genuine Dana Spicer)
- 3103-24
- Casting Number: C2-3-2189-5
- Nissan Xterra
