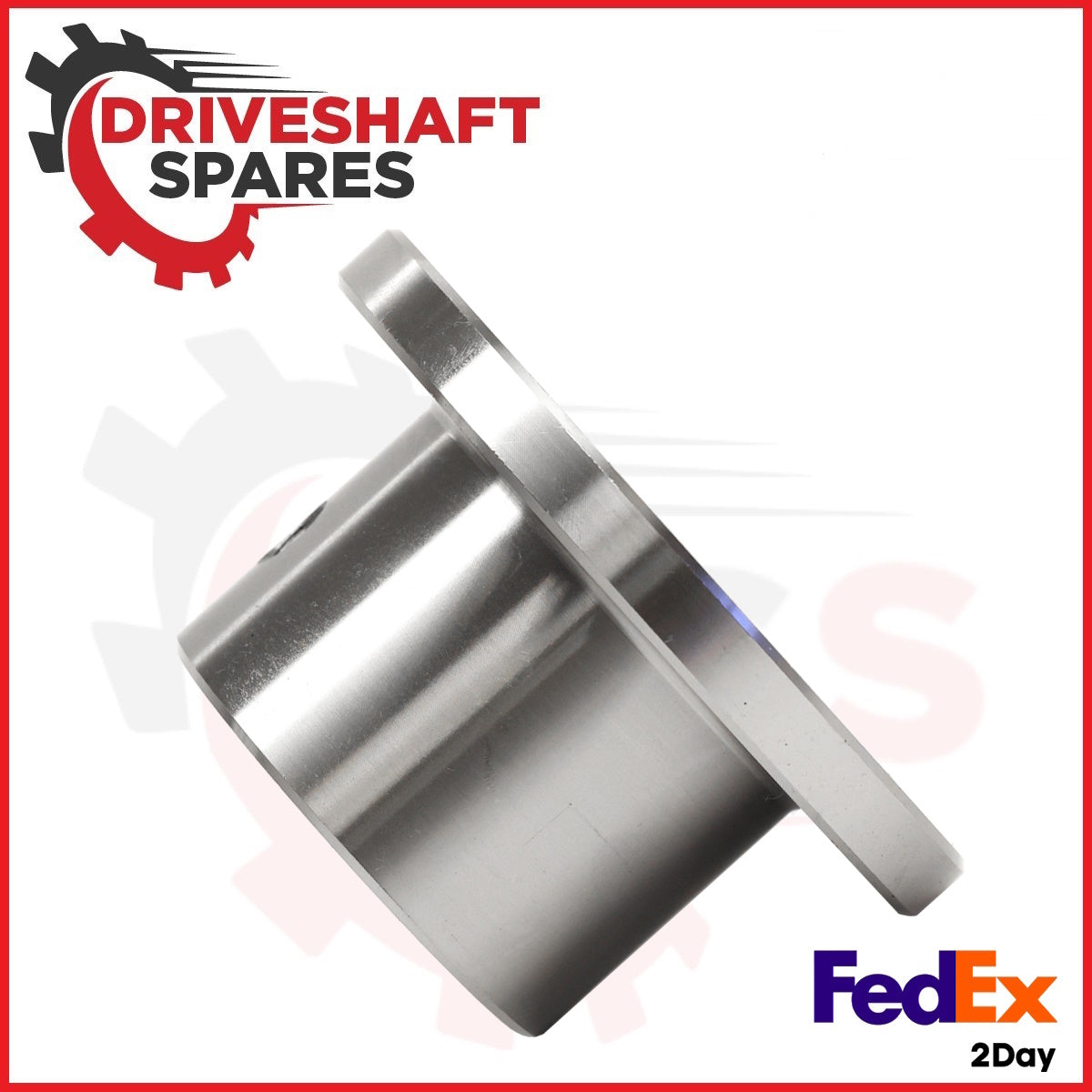

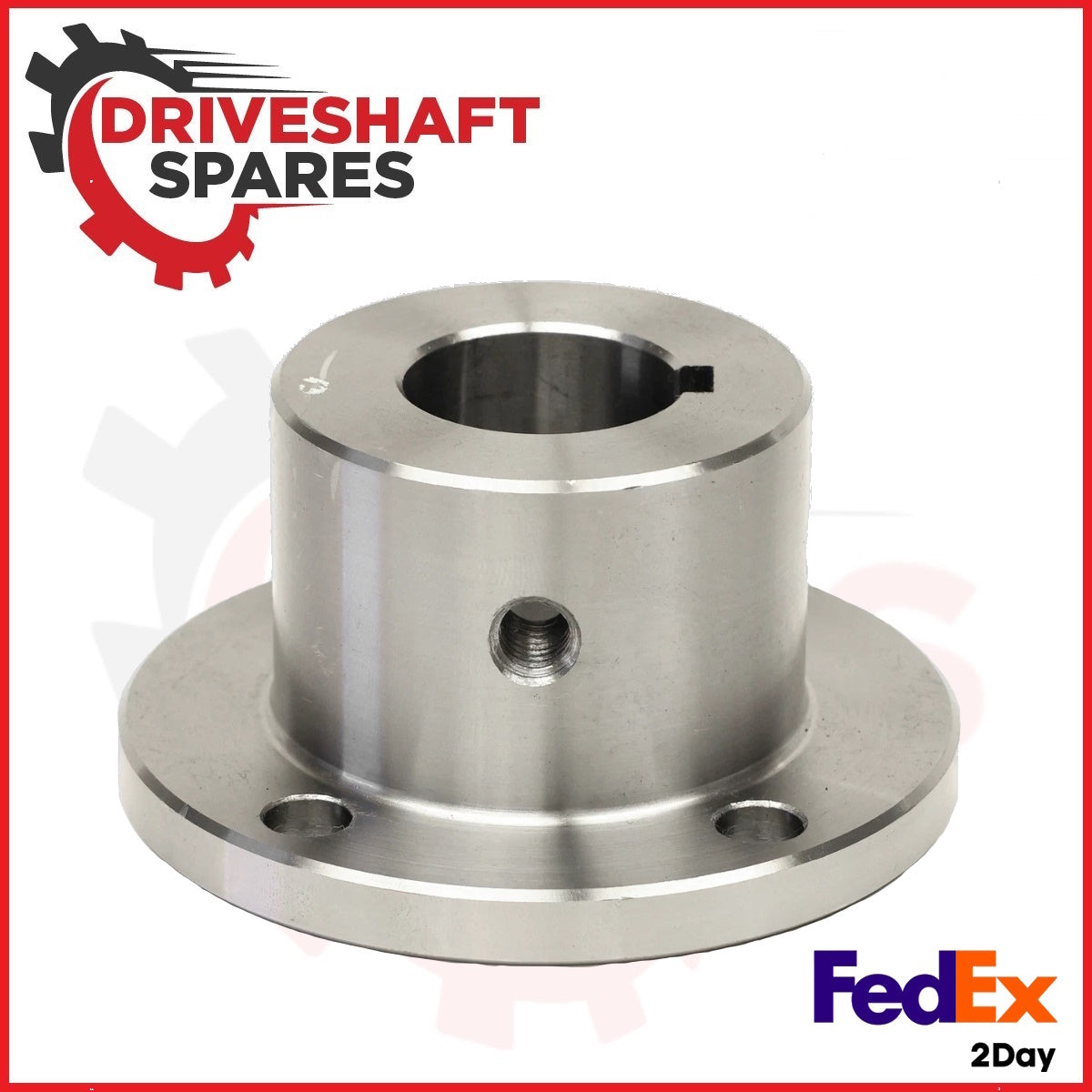

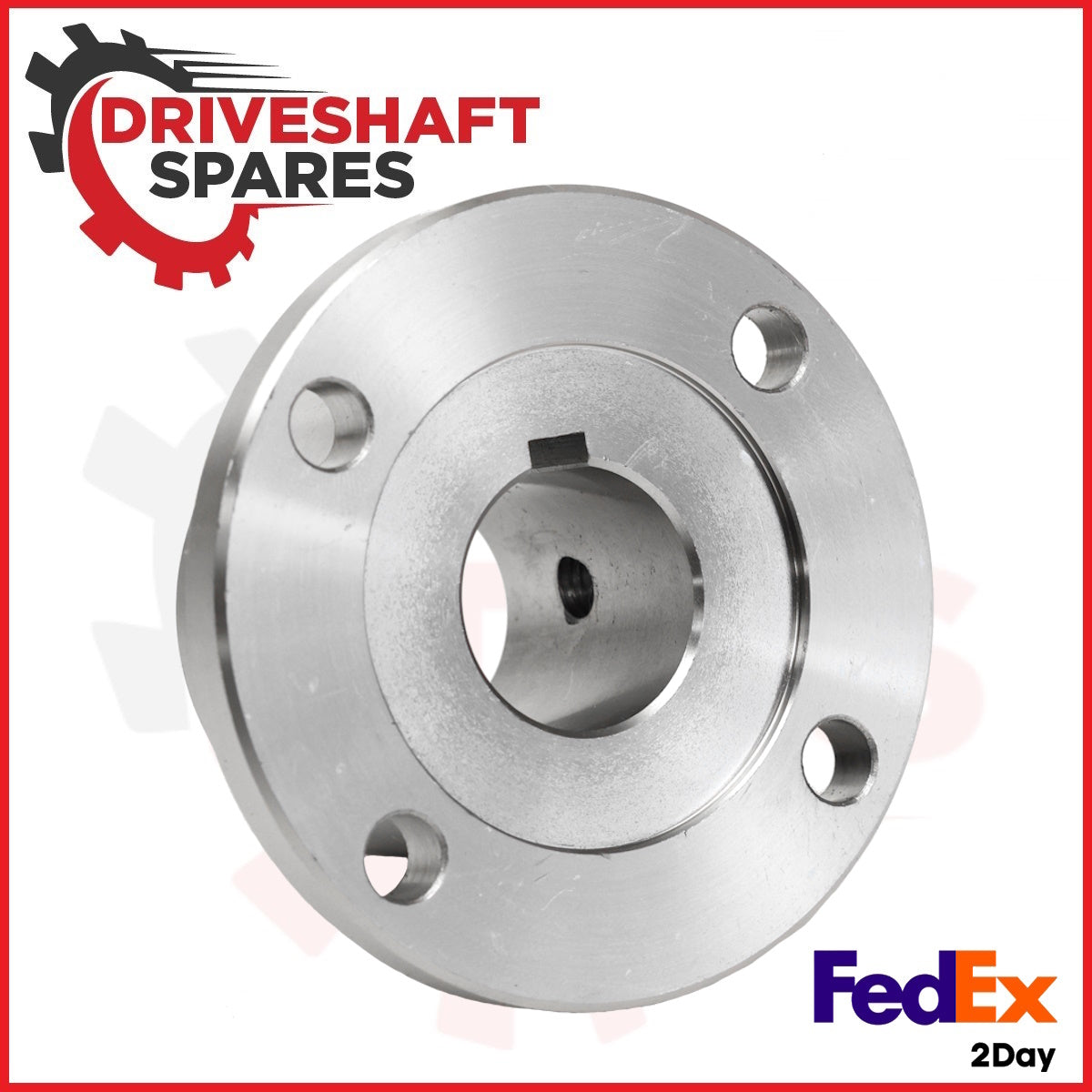

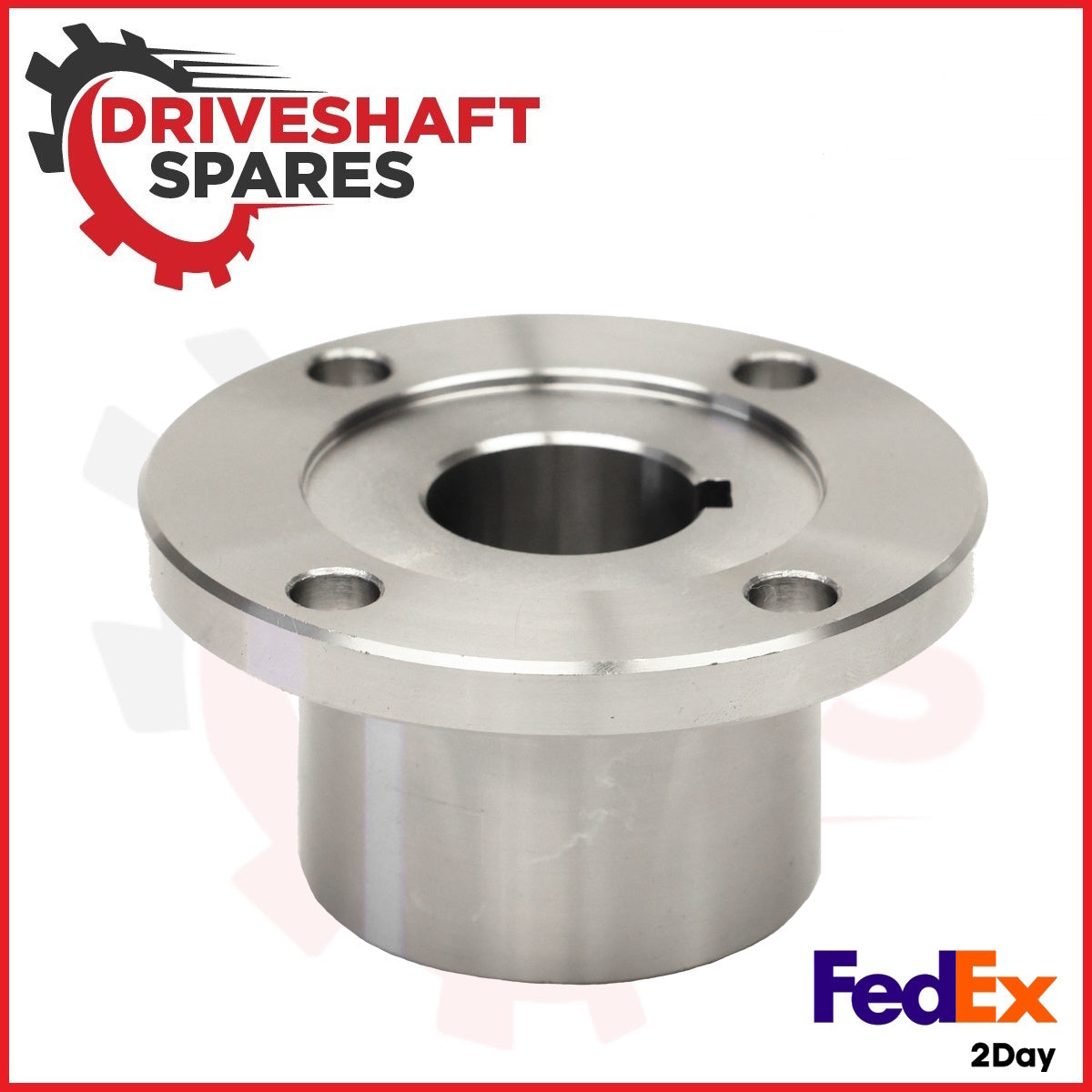

2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole
2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole
SKU:2-1-1313-1
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Unit price
per
Couldn't load pickup availability
2-1-1313-1 Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole

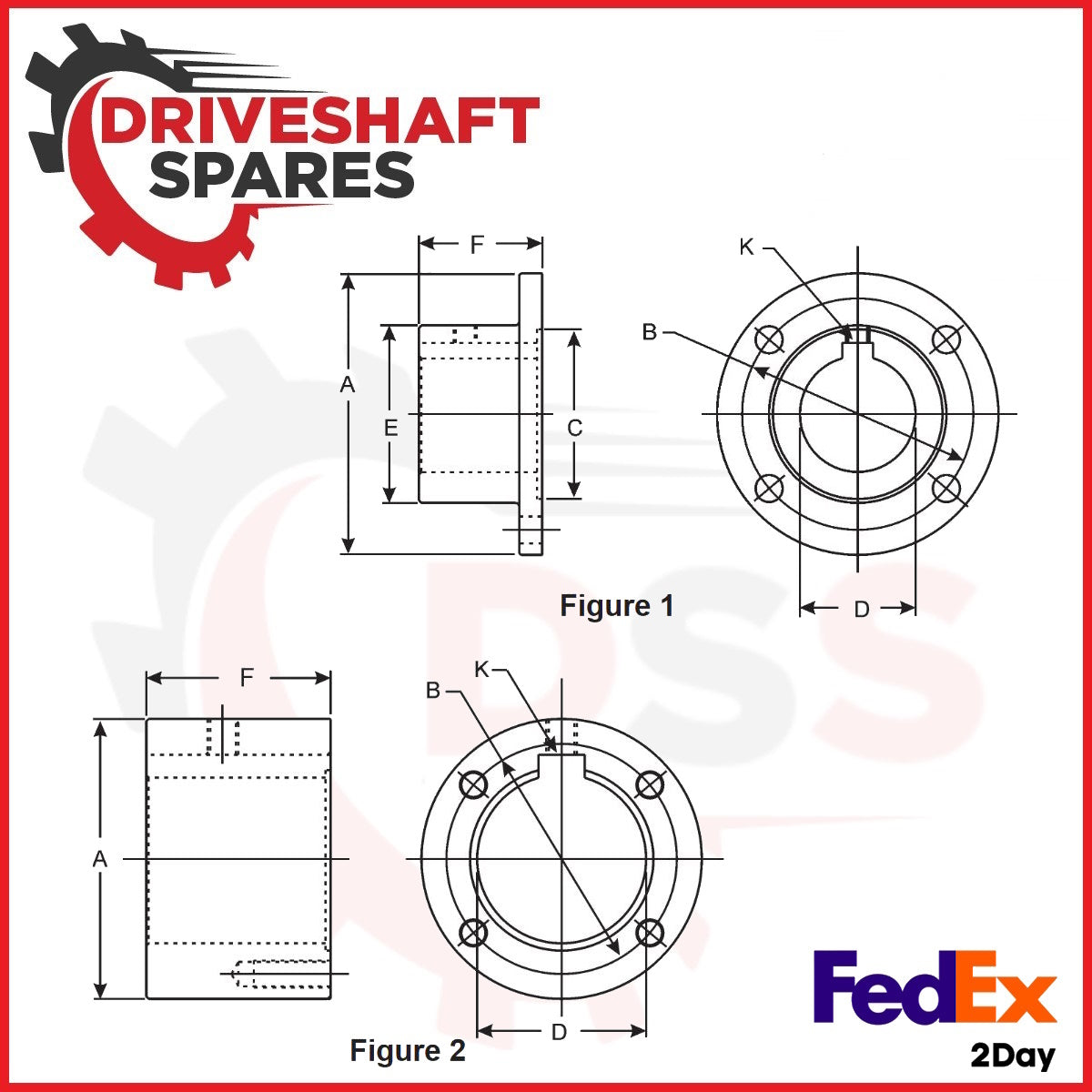

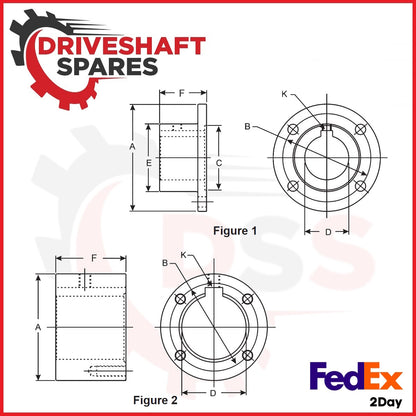

| Companion Flanges | |
| (D) | 1.000 |
| (A) | 3.880 |
| (B) | 3.130 |
| (C) | 2.375F |
| (E) | 2.438 |
| (F) | 2.000 |
| (K) | 0.250 |
| Holes | 4x .375 D |
- Companion Flange - Bore: 1" - Keyway: .250" - Pilot: 2.735"F - 4 Hole
