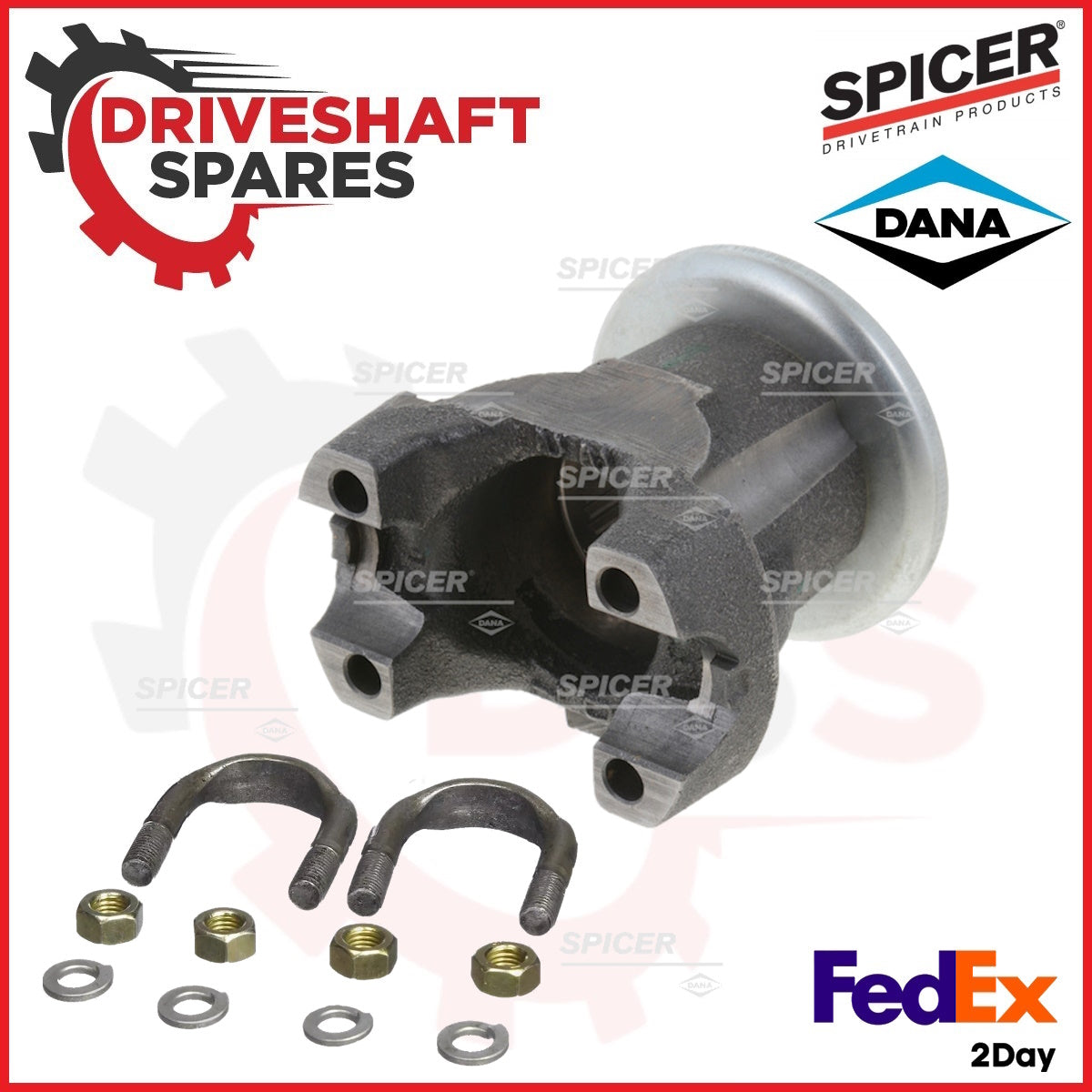

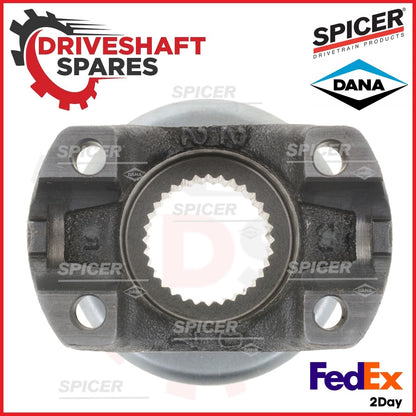

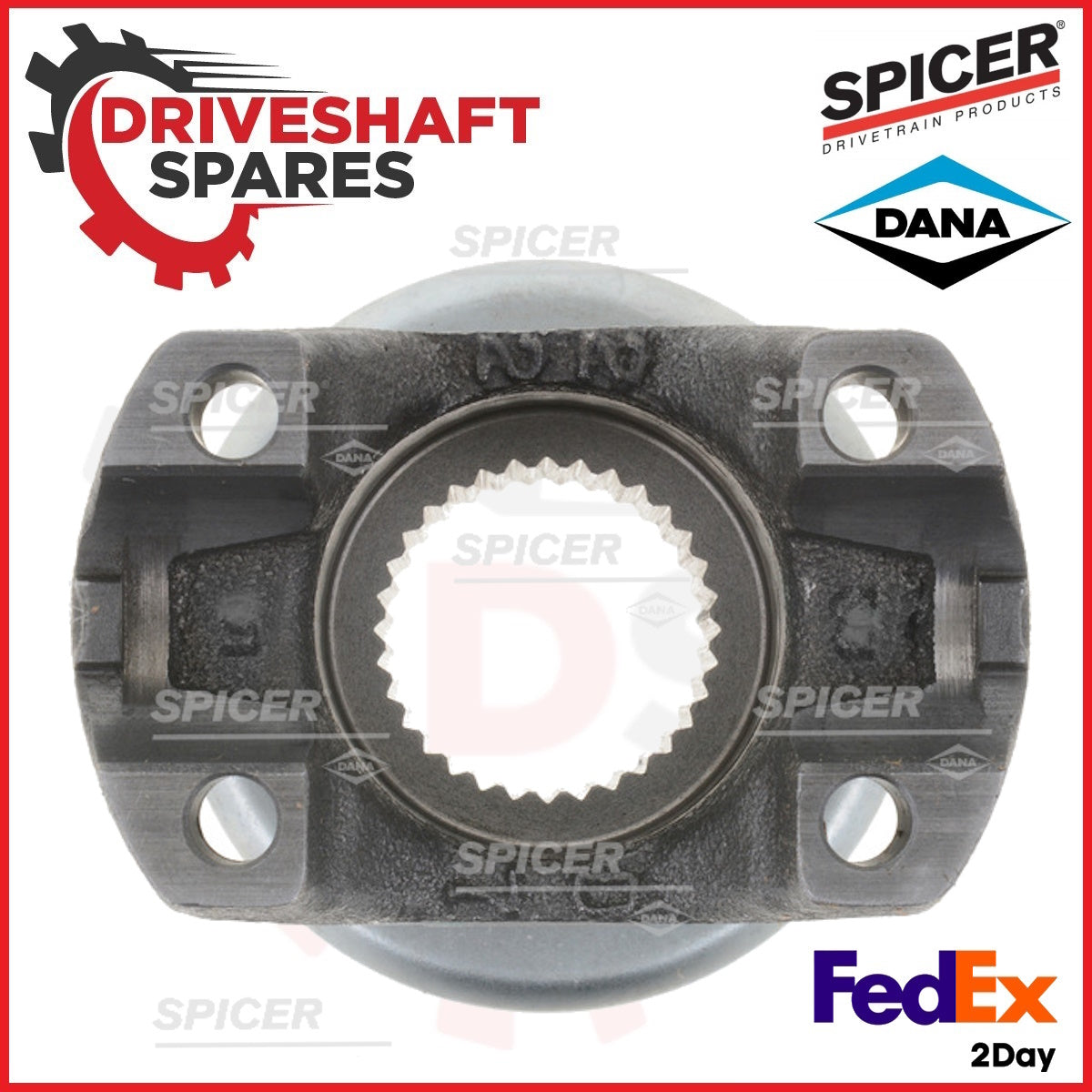

10016266 SPICER End Yoke 32 Spline 1310 Series + 2-94-28X SPICER U-Bolt Kit
10016266 SPICER End Yoke 32 Spline 1310 Series + 2-94-28X SPICER U-Bolt Kit
SKU:10016266S + 2-94-28XS
Regular price
$158.00 USD
Regular price
Sale price
$158.00 USD
Unit price
per
Couldn't load pickup availability
Compatible Vehicles
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| 2017,2018 | Jeep,Jeep | Wrangler,Wrangler JK | , | , |
| 2016,2017 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2015,2016 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2014,2015 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2013,2014 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2012,2013 | Jeep,Jeep | Wrangler, | , | , |
| 2011,2012 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2010,2011 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2009,2010 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2008,2008 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2007,2007 | Jeep,Jeep | Wrangler,Wrangler | , | , |
| 2004 | Jeep | Grand Cherokee | All | All |
| 2003 | Jeep | Grand Cherokee | All | All |
| 2002 | Jeep | Grand Cherokee | All | All |
| 2001 | Jeep | Grand Cherokee | All | All |
10016266 SPICER End Yoke 32 Spline 1310 Series + 2-94-28X SPICER U-Bolt Kit fit's Jeep Wrangler 2007-2017
| Brand | Spicer |
| Series | 1310 |
| Spline Count | 32 |
| Invoice | END YOKE |
| Yoke Style | BS |
| Hub Diameter R | 1.875 |
| C/L To End Hub S | 4.000 |
| Type | Splined Hole |
| Outside Yoke Dimension (In) E | 3.219 |
| Yoke Bearing Dimension (In) D | 1.062 |
| Major Diameter | 1.401 |
| Involute Spline | Y |
| VMRS | 024001003 |
| Length Thru Hole Q | 2.000 |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 2.34 LB |
| Harmonization Code | 8708998180 |
- Series 1310
- Spline Count 32
- Yoke Style BS
- Hub Diameter R 1.875
- C/L To End Hub S 4.000
- Type Splined Hole Outside Yoke Dimension (In) E 3.219
- Yoke Bearing Dimension (In) D 1.062
- Major Diameter 1.401
- Involute Spline Y VMRS 024001003
- Length Thru Hole Q 2.000
- Material Steel
- Compatible with the following U-Joint Kits: 5-153X / 5-1310X / 5-1310-1X

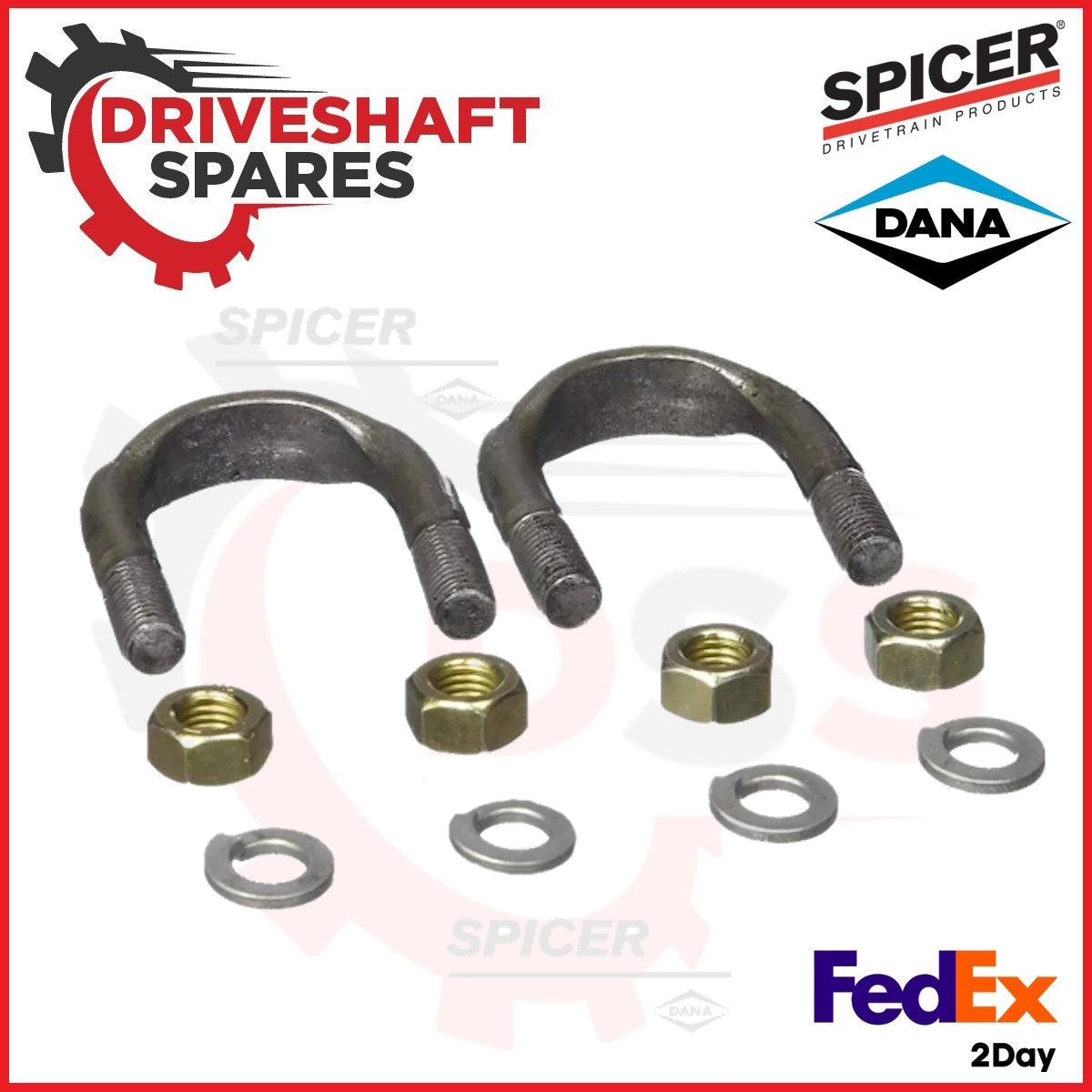

Spicer 1310 U-Bolt:
- Brand - Spicer
- Series - 1210/1310/1330
- Thread Diameter - 0.312-24.000
- C/L To C/L - 1.416
- Fits Bearing Cap Diameter - 1.062
- Nut Torque - 14-17
